Redskin/Blueskin

Fire

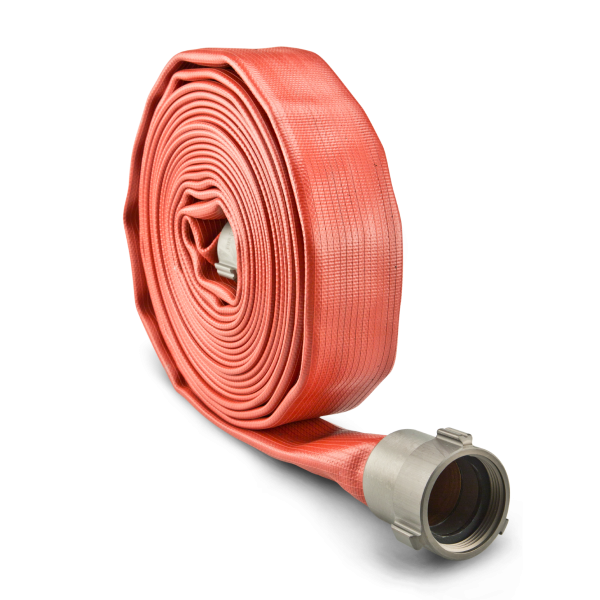

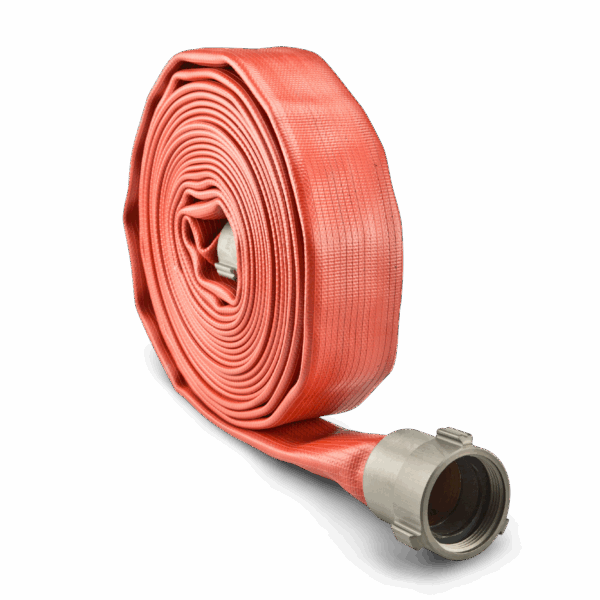

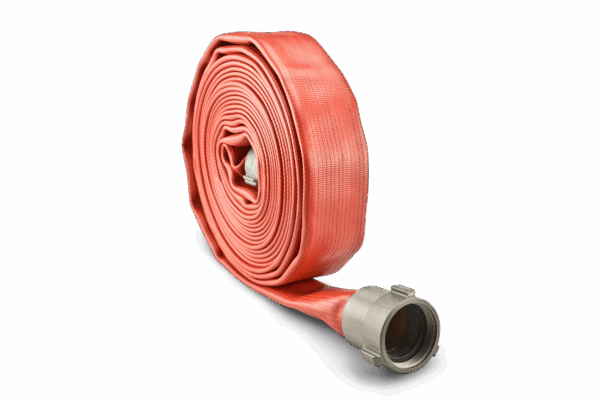

BullDog Redskin/Blueskin is a lay-flat, lightweight, flexible firehose specifically designed for industrial fire protection. This hose brings tough, versatile firefighting power to departments in industrial situations. Redskin/Blueskin is UL approved and features a unique through-the-weave, one-piece construction that will not delaminate. The synthetic reinforcement is totally encased in a nitrile-rubber cover and lining which is resistant to fuels, oils, and chemicals. This dependable and agile industrial fire hose is specifically engineered for reliable plant fire protection.



Redskin/Blueskin Features
  • Hose meets or exceeds specifications for heat and kink resistance
  • Lay-flat, lightweight and flexible design is really suited for industrial fire protection and in-plant apparatus
  • Nitrile-rubber cover eliminates additional weight issues caused by water pick up during use and greatly increases abrasion resistance, providing a long service life
  • No drying time required — just wash and store
  • The hose is designed to resist cracking mildew and rot, which translates to a long service life
  • Resists fuels, oils and a wide range of chemicals and bases
  • Best in class adhesion provides enhanced hose performance and increased hose life
  • Can be offered with Underwriters Laboratories listing or Factory Mutual approval available on 1 1/2” and 2 1/2” diameters, FM not available on Blueskin.
  • Redskin/Blueskin is manufactured to meet or exceed NFPA 1961 standard



Download

This product is currently out of stock and unavailable.

$0,00
Inquire Now
Inquire About Redskin/Blueskin
This field is for validation purposes and should be left unchanged.
Redskin/Blueskin Specifications:
Size Pressure Bowl Size Weight (50'/15M) Coil Diameter (50'/15M)
Service Proof Burst
inch mm psi kpa psi kpa psi kpa inch lbs kg inch mm
1-1/2 38 300 2,068 600 4,137 900 6,205 1-3/4 11 5 13 330
1-3/4 44 300 2,068 600 4,137 900 6,205 2 14 6.4 13.75 349
2 51 300 2,068 600 4,137 900 6.25 2-5/16 18 8.2 14.5 368
2-1/2 64 300 2,068 600 4137 900 6,205 2-3/4 22 10 14.5 368
3* 76 300 2,068 600 4,137 900 6,205 3-5/16 30 13.6 16.5 419
* Redskin Hose only
Technical Data
Inner Hose Cover & LinerNitrile/PVC Rubber
Inner Hose Reinforcement100% synthetic circular woven
Lengths50’, 75’, 100’ coupled
Lengths UncoupledUp to 660’ (201 m)
Factory Installed CouplingsPer Customer Requirement
Temperature Range-36º F to 158º F (-37º C to 70º C)
ApprovalsUL Listed, ULC Listed (1-1/2”, 1-3/4”, 2-1/2”) FM Approved (1-1/2”, 2-1/2” Redskin only)
