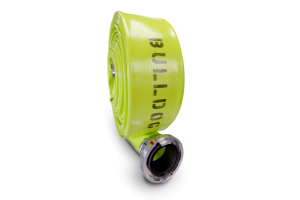

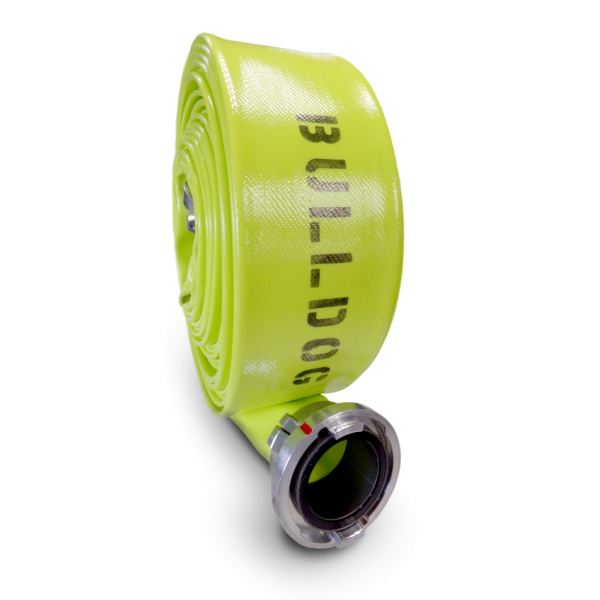

Hi-Vol TPU Supply Hose

Hi-Vol TPU is an extruded through-the-weave, thermoplastic polyurethane (TPU) fire hose. It provides excellent abrasion resistance, reduced weight, and improved kink resistance in comparison to rubber, along with the benefits of UV and ozone resistance. Its smooth polyurethane finish leads to easier deployment and retrieval, helping you work both faster and smarter.

The Hi-Vol TPU is available in green and orange colors, increasing visibility on the scene. It is the next generation of supply hose, with a compact design that makes it easier to transport and access in high-pressure situations. The Hi-Vol TPU achieves agility without sacrificing water flow capabilities, bringing the best of both worlds to your department.



Hi-Vol TPU Features
  • Superior Abrasion PerformanceTPU cover increases abrasion resistance, eliminates additional weight issues caused by water pick up during use, and provides exceptional chemical resistance.
  • Exceeds Standards
    Hi-Vol TPU is manufactured to meet or exceed NFPA 1961 standard.
  • Minimized Friction LossExtruded through-the-weave TPU construction and ultra- smooth liner minimize friction loss, improving water flow.
  • Compact DesignImproved packability takes up less room in the hose bed, providing easier access when every second matters.
  • Hi-Vis Safety ColorsGreen and orange colors available. Provides excellent efficiency and enhanced visibility on the fireground.
  • Available in 4” – 6” Diameter
  • BullDog Hose meets the requirements of ISO 9001:2015
Watch Supply Hose In ActionInquire Now
Inquire About Hi-Vol TPU Supply Hose
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00
Hi-Vol TPU Specifications:
Size Pressure Bowl Size Weight (100'/30M) Coil Diameter (100'/30M)
Service Proof Burst
inch mm psi kpa psi kpa psi kpa inch lbs kg inch mm
4 100 200 1,400 400 2,800 600 4,200 4-5/16 75 34.0 22 560
5 125 200 1,400 400 2,800 600 4,200 5-3/8 94 42.6 26 660
6 152 200 1,400 400 2,800 600 4,200 6-15/32 125 56.7 32 813
Technical Data
OuterThermoplastic Polyurethane
Inner Hose Reinforcement 100% synthetic circular woven
Lengths 25’, 50’, 100’ coupled
Lengths UncoupledUp to 660’ (201 m)
Factory Installed CouplingsPer Customer Requirement
Temperature Range-58º F to 158º F (-50º C to 70º C)
