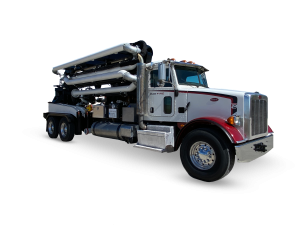

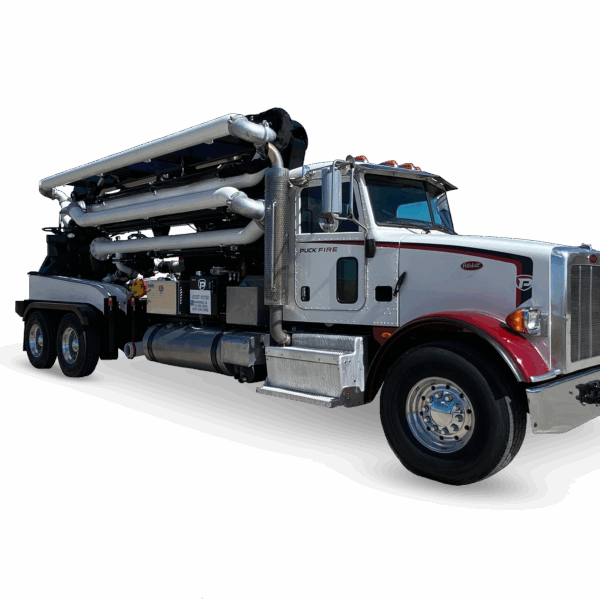

Puck Fire Boom Truck front passenger side angle with boom tucked away for transport
a boom truck parked and stabilized next to water with a blue hose rolled up next to the truck and ready to use
the back of a boom truck parked and stabilized by the water and connected to blue hoses. a firetruck is off to the side, ready to be connected
a fire truck and boom truck connected via a blue hose while parked next to the water
Boom Truck and Force Feed Truck engine
Force Feed Truck for Industrial Fire
the Force Feed truck parked next to the water with riggers out and boom extended into the water. the connected hose is feeding to a quick attack truck that is shooting water great distance over the water
a close view of the Force Feed truck parked next to the water with riggers out and boom extended into the water. a quick attack truck that is shooting water great distance over the water in the background
a view of the submerged nozzle of the boom of the force feed truck
a close view of the submerged nozzle of the boom of the force feed truck
a close view of the submerged nozzle of the boom of the force feed truck
a view of the nozzle of the boom of the force feed truck rising out of the water

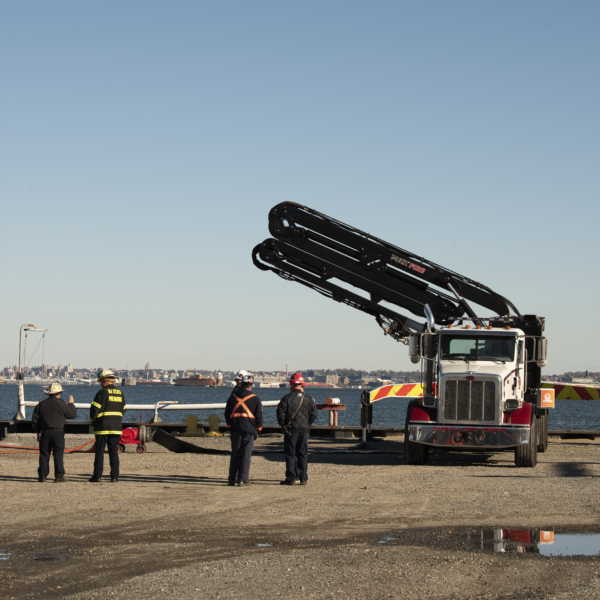

the boom of the force feed truck extending while firefighters have conversations around it

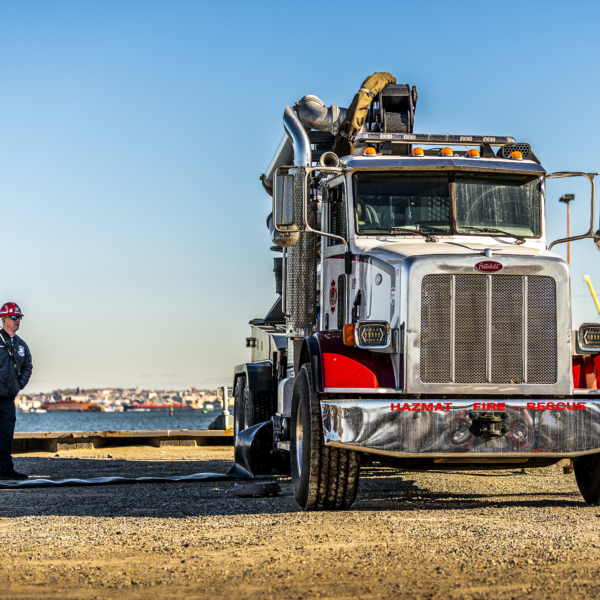

a front view of the force feed truck
the back of the force feed truck with 4 outriggers and a large connected hose

Force Feed Truck

$500,00$2.000,00

Forged with over 45 years of liquid transfer experience, the Force Feed Truck is engineered for versatility and designed to attack the task at hand—without compromise. Puck brings world class pumping capabilities to your liquid delivery operations. With the help of the Force Feed Truck and large diameter hose, you can get big water to your big fires.

With the 577 HP pump engine of a FF4000-70 and a 70’ hydraulic boom, you can achieve faster setup times using less manpower. Large outriggers provide a stable base while a KROHNE flowmeter gives verifiable flow rates up to 4,000 GPM. The submersible pump has 8” pipework that keeps flow rates high when gathering water from ponds, lakes, oceans, or other deep water source. Fast deployment and proven flow rates gives your team the big water it needs to suppress fires quickly and safely.

All Puck equipment is built with our proven expertise and designed for optimal performance. Combined with LightSpeed, our automated pump control system, our pump units improve your water transfer efficiency and streamline your operation from a safe distance.

A New Approach to Bringing Water to the Fire
Force Feed Truck Features
  • Fast setup times
  • Wireless boom control
  • 70′ boom length
  • 14 hour run time
  • 300 gallon fuel capacity
  • 24 gallon DEF capacity
  • 577 HP pump Cat engine
  • 8NHG19 Cornell pump with 19″ impeller
  • Large outrigger footprint for improved stability
  • Can be used with customer preferred chassis: International, Freightliner, Peterbilt, and more
  • Flow rate up to 4,000 GPM
  • 6″-10″ discharge connections
  • Shorter wheelbase and truck length (minimum 273″/83.2 m)
  • Compact rear mounted boom
  • Centralized control center
  • True 8″ ID steel FDS with minimal flow obstructions
  • LightSpeed automated pump control
Puck Fire Product VideoInquire Now
Inquire About Force Feed Truck
This field is for validation purposes and should be left unchanged.
$500,00

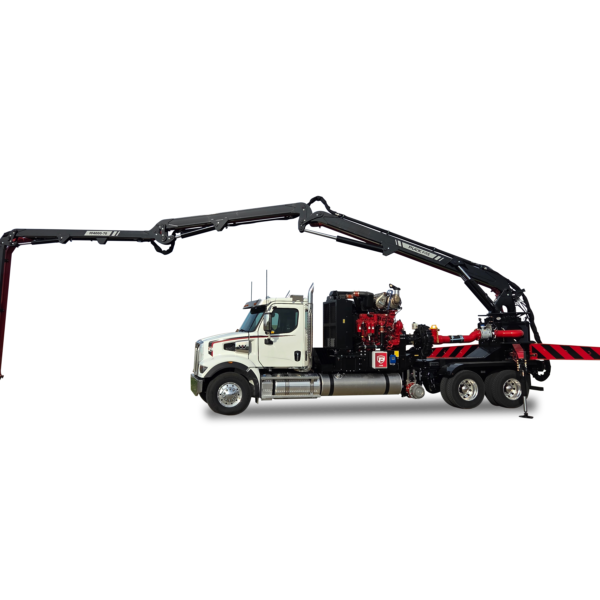

the unfolding 70 foot boom of a Puck Fire Force Feed Truck

FAST DEPLOYMENT

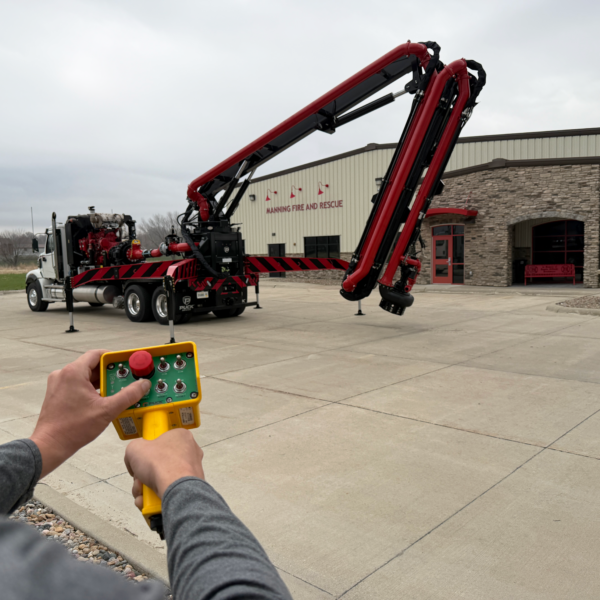

Quickly set up at the fire scene using less manpower with the wireless boom control of a Puck Fire® Force Feed Truck.

a Puck Fire Force Feed Truck with extended outriggers and folded boom in front of water

MAXIMUM RUN TIME

The Force Feed Truck from Puck Fire has 14 hour run time with its 300 gallon diesel fuel capacity and 24 gallon DEF capacity.

the engine area of a Puck Fire Force Feed Truck with extended boom and outriggers

MAXIMUM DISPLACEMENT

This mobile pump unit features a 577 HP Cat engine paired with a 8NHG19 Cornell pump with a 19″ impeller.

a Force Feed Truck with boom in the water and extended outriggers

STABILITY AND SAFETY

The large outrigger footprint provides improved stability for the Force Feed Truck, as well as a weight-balanced chassis for safety.

the front of a Puck Fire Force Feed with a Peterbilt chassis

CHASSIS COMPATIBILITY

The Force Feed Truck is compatible with chassis from brands such as International, Freightliner, and Peterbilt.

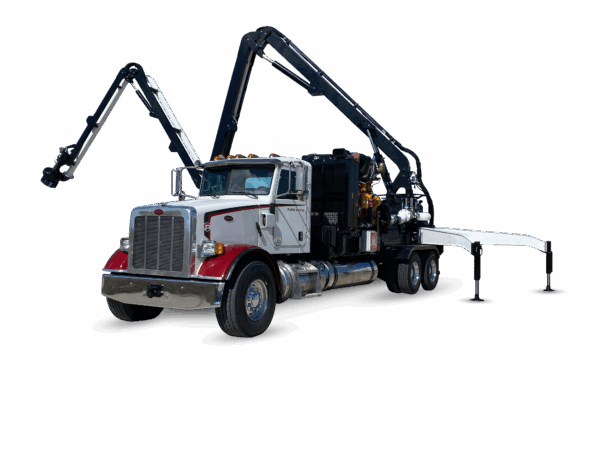

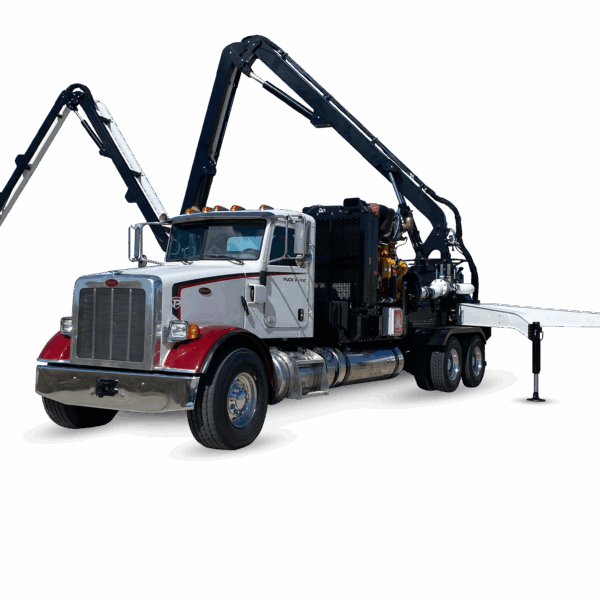

the 70 foot boom of a Puck Fire Force Feed truck unfolding

MAXIMUM REACH

The 4 section Z-fold boom on the Force Feed Truck has a 70′ horizontal reach to gain access to the water source.

Model Number EnginePumpFeeder Pump
FF4000-70C13B (577 HP) 8NHG19 Cornell10NNWH
