a FF 4570 force feed trailer on display

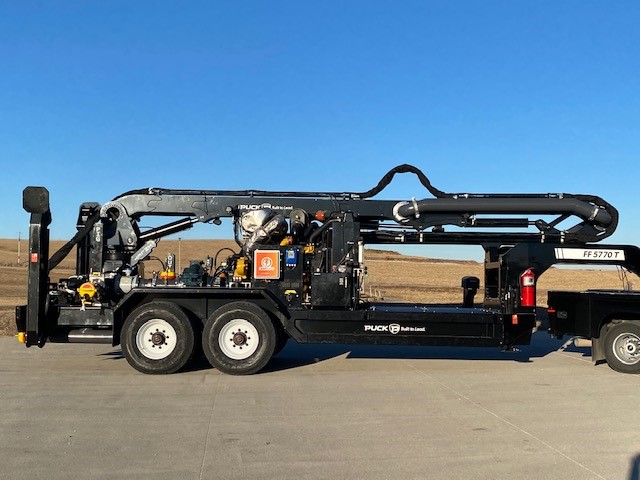

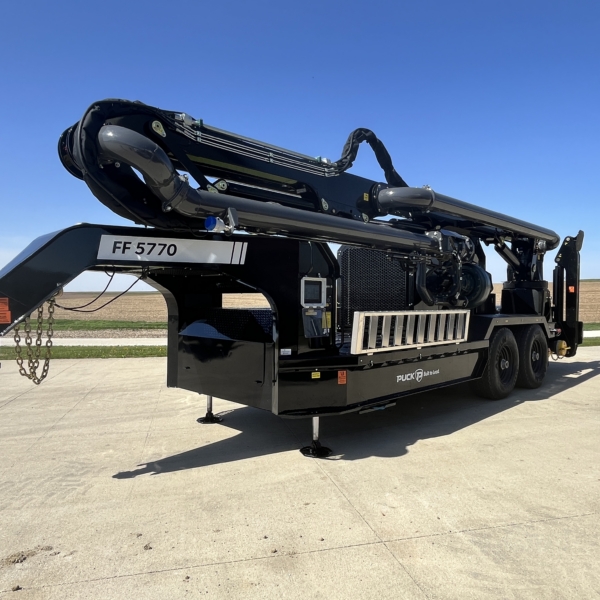

side view of Puck FF5770 Manure Pump Unit parked outside
back side angle of Puck Force Feed Pump FF5770 parked outside
Force Feed trailer 5770 Tandem Pump unit folded up for easy transport and storage
Force Feed Tandem 3009
FF 3009 T back with boom- force feed and agitation
Back

Force Feed Trailers

Agriculture

Force Feed Tandem 3009

Empty out your liquid storage with the versatile power of the Puck Force Feed manure pump unit. Built solid with hydrostat controls and a variety of attachments for all of your pumping needs, our Force Feed lead pump brings a higher level of performance for pumping liquid of all types. Our sales team is ready to help you find the right Force Feed trailer package for your operation. Puck Force Feed units also have the option to be paired with a Puck Lagoon Feeder, which lets the Force Feed trailer also service large lagoons.

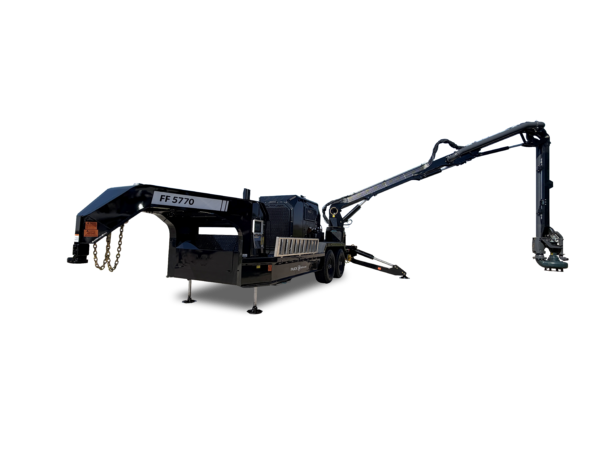

The remote-controlled hydraulic boom can service pits 13’-18’ deep with our Force Feed 4570. Extend your reach with the FF 5770 T, which offers more horsepower and the ability to go up and over a slurrystore, and maintains all the highly regarded automatic functions on our equipment.

Outfitted with LightSpeed, all Puck manure pump units are designed to give you full control and run with maximum efficiency.

Force Feed Trailer Features
  • Knuckle boom design that fits in all sizes of liquid storage
  • Remote control boom simplifies setting the boom, even in small spaces
  • LightSpeed allows for faster and enhanced pump control
  • Control the pump from your device anywhere, with the comfort of LightSpeed safety features
  • Set parameters for added monitoring and automatic responses with auto-throttle
  • Monitor flow and pressures remotely with LightSpeed
  • Utility vehicle ramps
DOWNLOAD
FF 5770 Tandem Overview VideoFF 3009 T Product OverviewInquire Now
Inquire About Force Feed Trailers
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00
a black pickup truck with the Puck Enterprises name across the side with a FF 3009 T attached to the hitch and parked in front of a hog barn. The boom and outriggers are extended

ADAPTABLE DESIGN

The remote-controlled hydraulic boom of Puck’s Force Feed Trailer allows it to service any size of liquid storage, up to 13′ deep. Three knuckle points mean easy setup and increased maneuverability, delivering performance no matter the scale of your operation.

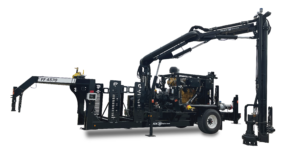

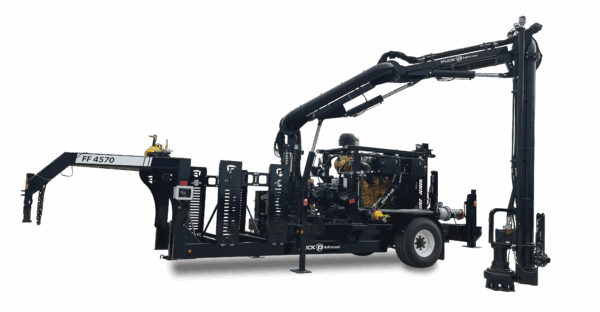

a Puck FF 4570 trailer alongside a barn with the boom extended into the pit

PEACE OF MIND ON THE JOB

LightSpeed is always watching the pump. Set flow, pressures and automatic responses with Auto-throttle to ensure maximum efficiency and ideal flow rates. This technology continually adjusts the feeder and primary pumps for peak performance and gives you the comfort of top-notch safety features.

LightSpeed control system

INSTANT PUMP CONTROL

Accessible from any device, LightSpeed gives you the ability to fully start up your pumps remotely, engage the feeder pump, target a specific flow rate, set pressure parameters and more. Now built with an even faster pump response and additional software features, LightSpeed is an invaluable tool for your operation.

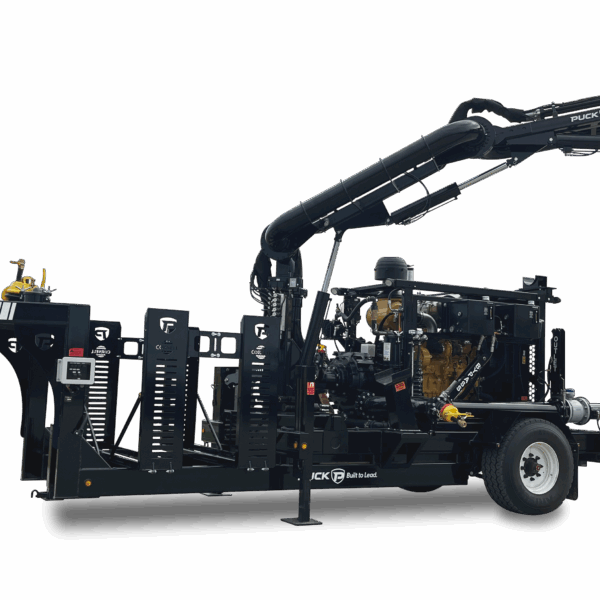

the front angled side of a FF 4570 with boom extended into a pit

ENERGY EFFICIENCY

The Force Feed Trailer continues to bring value to you each year, with more gallons pumped per gallon of diesel fuel consumed. This lowers the cost of your operation and ensures you’re operating at top efficiency. The hydrostatic system transmits more horsepower to the feeder pump to bring you even more fuel savings.

Model Number EnginePumpFeeder Pump
FF 3009 TandemC7.1L (302 HP)-10NNWH
FF 4570C9.3B (456 HP) 6819MPC8NNWH or Doda 200
FF 5770 TandemC13B (577 HP)6819MPC10NNWH or Nuhn 17"
