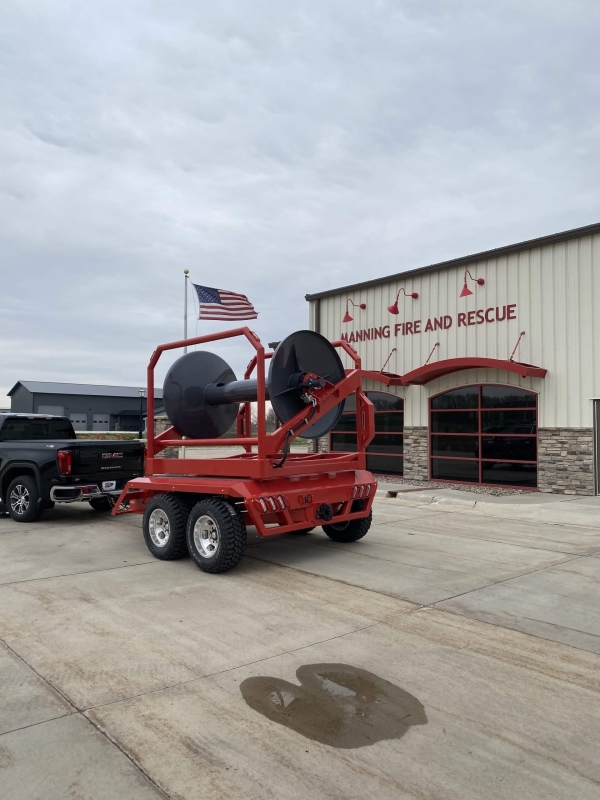

a red turn table reel from Puck Fire

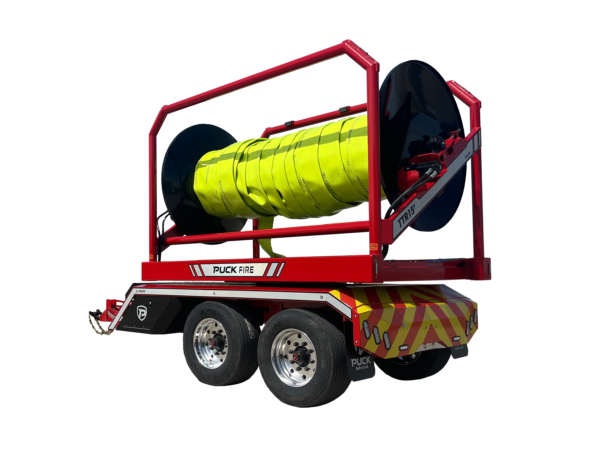

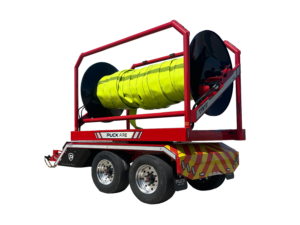

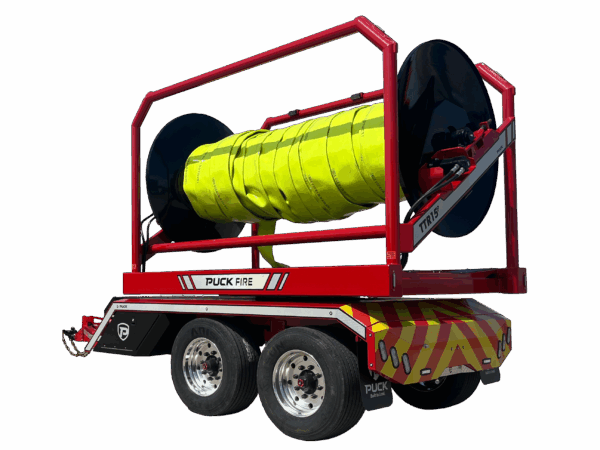

the back side of a TTR 15 turn table reel hose cart parked outside
Back

Turn Table Reels

Fire

Built tough, Puck Hose Carts are designed to transport hose for water or other liquids.  Maximizing hose life and large enough to move high volumes of water, Puck Turn Table Reels are the epitome of proven performance.

The two-way, hydraulically powered reel is designed for a single operator to free up workers and decrease downtime. Laying and retrieving hose has never been easier or quicker, with a hydraulic hose rack on a slewing bearing swivel to offer 120 degrees of rotation. Puck’s patented Arch Guard and domed reel ends keep the hose from twisting, rolling, kinking, or falling off the cart. The A-frame chassis has an interchangeable hitch and the tandem axles sit on rugged tires for increased traction.

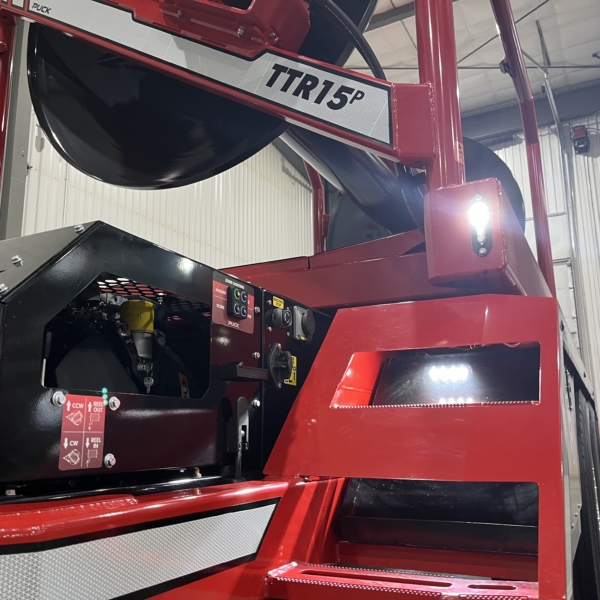

Puck Turn Table Reels also feature DOT LED light kits with battery breakaway for ease of transport to operational sites, as well as electric brakes and leaf spring suspension. The powerpack on the front of Puck Hose Carts contains the engine and hydraulic level controls, and the cage on the front of the A-frame features storage space. Puck Fire’s TTRs expand hose capacity to a whole new level.

Turn Table Reels Features
  • Two-way hydraulically powered roll
  • Hydraulically articulated tongue winds hose side-to-side
  • Puck Arch Guard keeps hose on the reel
  • Hydraulic hose rack
  • Slewing bearing swivel
  • Interchangeable hitch
  • Domed reel ends
  • Leaf spring suspension
  • 305 or 425 tires
  • Full control from inside truck; one person operation
Download
Inquire Now
Inquire About Turn Table Reels
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00

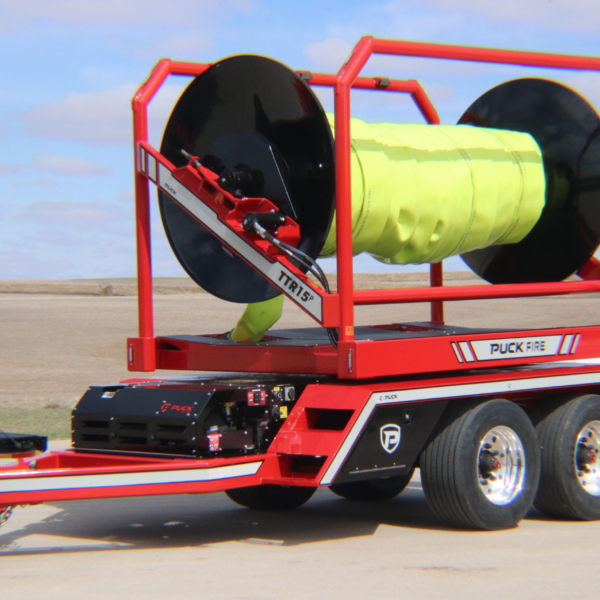

side view of a TTR-30 Turn-table reel hose cart parked outside

HAVE MORE CAPACITY, GET MORE WORK DONE

Puck Enterprises’ TTR-30 expands hose reel capacity to a whole new level. This turn-table reel can manage 2 1/2 miles of 8-inch hose at a time — or even 1 1/2 miles of 10-inch.

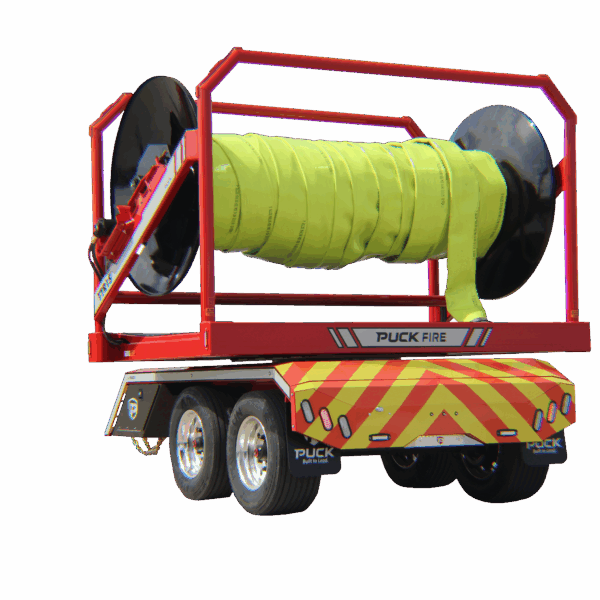

back left side view of the TTR 30 turn table hose cart reel set outside

140-DEGREES OF REEL TURNING

Deploying dragline application hose effectively and efficiently is one of many defining features with the TTR-30. It’s 140-degrees of hose reel turning allows operators to place hose more precisely. This capability makes for a more streamlined operation.

front left side view of the TTR 30 turn table hose cart reel set outside

IMPROVED VISIBILITY

A higher reel clears up the operator’s line of sight, making it easy to fill the cart and take care of the hose. These tasks should be simple, and the Puck TTR-30 makes sure that they stay that way.

MODEL SPECIFICATIONS
Model Number Hydraulic Pull MotorAxleBrakesTiresLightsWidthHeightUnloaded Weight
TTR-4Single Planetary DriveTandem 7,000 lb Axle-lessElectric Brakes305/65 R 17DOT Light Kit with Battery Breakaway8' 4"9' 3"6,600 lbs
TTR-15Double - one on each side Tandem 15,000lbsElectric Brakes445/50 R 22.5
Option: 500/45 R 22.5		DOT Light Kit with Battery Breakaway8' 6"12'11,400 lbs
