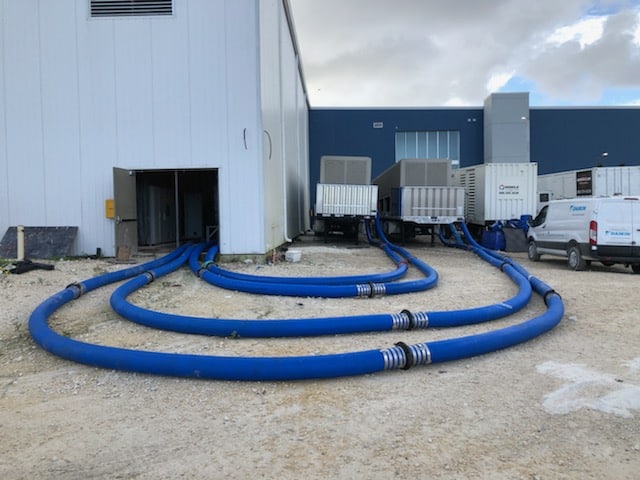

four Chiller hoses connecting 3 mobile Daikin units to the interior of a building

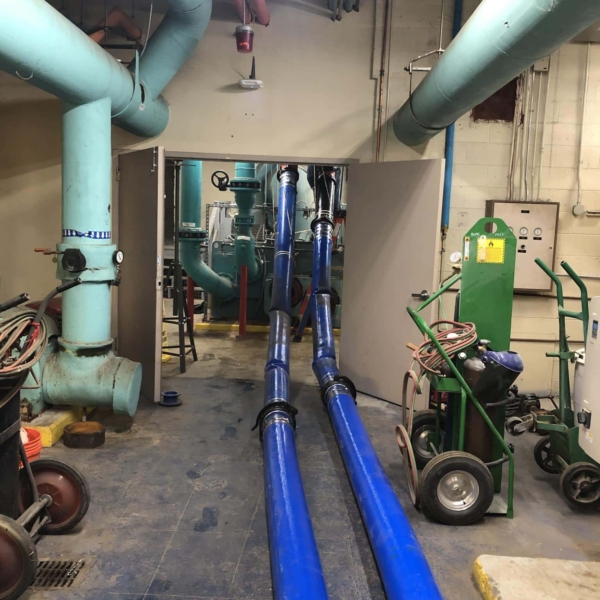

two Chiller hoses in use by Daikin inside a building

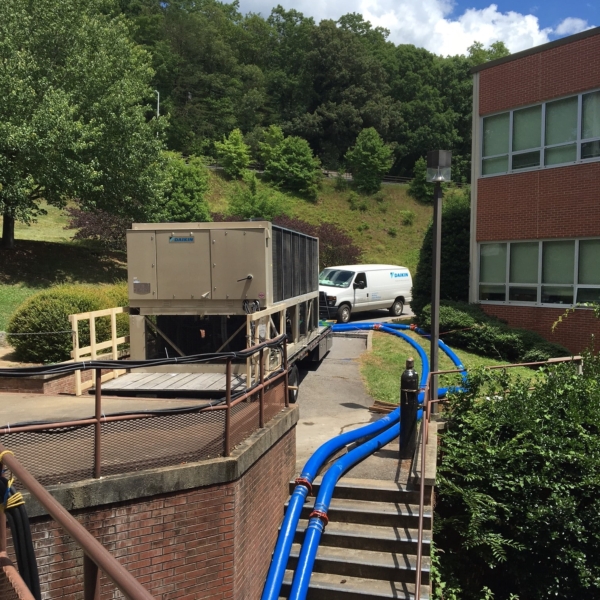

two Chiller Hoses in use by Daikin going from a mobile unit and down some stairs into a building
Back

Chiller Hose

Industrial

For rental chiller installations and other HVAC hose-related operations, BullDog’s premium lay-flat Chiller Hose™ is tough enough to get the job done. This industrial hose is lightweight and flexible, made with thermoplastic polyurethane extruded through-the-weave to create an collapsible hose with exceptional abrasion and chemical resistance. The high-strength woven reinforcement offers the high strength and flexibility needed for rental chiller installations. The lay-flat design of the Chiller Hose means that long-term storage in coiled configuration will have minimal impact on hose life. Chiller Hose is an HVAC hose with low-pressure loss for efficient pumping. Swells up to 10% above uncharged diameter at maximum operating pressure enabling more liquid to be pumped.

BullDog Hose has been in the lay-flat Chiller Hose business for more than 25 years and has been the trusted supplier to some of the largest rental chiller outfits in the country. BullDog Hose Company can customize assemblies to meet the needs of your operation.

Chiller Hose Features
  • Improved PackabilityLong-term storage in coiled configurations will have minimal impact on Chiller Hose life
  • Durable ConstructionFeatures a unique through-the-weave one-piece construction comprising a circular woven high tenacity polyester reinforcement totally encapsulated in a tough elastomeric polyurethane cover and lining
  • Long Service LifeDesigned for long life and maintenance-free service in even the harshest environments. Tough and durable with exceptional resistance to abrasion and cutting for use on a wide variety of ground conditions. Resistant to fuels, chemicals, UV, ozone, weathering, hydrolysis, and microbiological attack
  • Operating Temperature Range-58°F to +158°F (-37°C to 70°C)
  • Low Operating CostsA low-pressure loss for efficient pumping. Swells up to 10% above uncharged diameter at maximum operating pressure enabling more water to be pumped.
  • Additional HardwareWide range of industrial hose couplings and hardware available for connecting the hose to additional segments, auxiliary hardware, or equipment
Download
Inquire Now
Inquire About Chiller Hose
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00
Chiller Hose Specifications:
Size Pressure Wall Thickness Weight**
Working Burst*
inch mm psi kpa psi kpa inch mm lbs/ft kg
2 51 300 1,379 600 4,137 .085 2.16 0.25 0.113
2-1/2 64 300 1,379 600 4,137 .095 2.41 0.37 0.168
3 76 300 1,379 600 4,137 .102 2.59 0.56 0.254
4 102 300 1,379 600 4,137 .125 3.18 0.80 0.363
6 152 300 1,379 600 4,137 .140 3.56 1.25 0.567
7-1/4 184 250 1,034 500 3,447 .190 4.83 1.90 0.862
8 203 300 1,379 600 4,137 .180 4.57 2.15 0.975
10 254 250 1,034 500 3,447 .185 4.70 2.80 1.270
* Or maximum working pressure of attached coupling, whichever is the lower
** Excluding couplings
Technical Data
OuterThermoplastic Polyurethane
Inner Hose Reinforcement100% synthetic circular woven
LengthsUp to 660’ (201 m)
Factory Installed CouplingsPer Customer Requirement
Temperature Range-58° to 158° (-37º C to 70º C)
