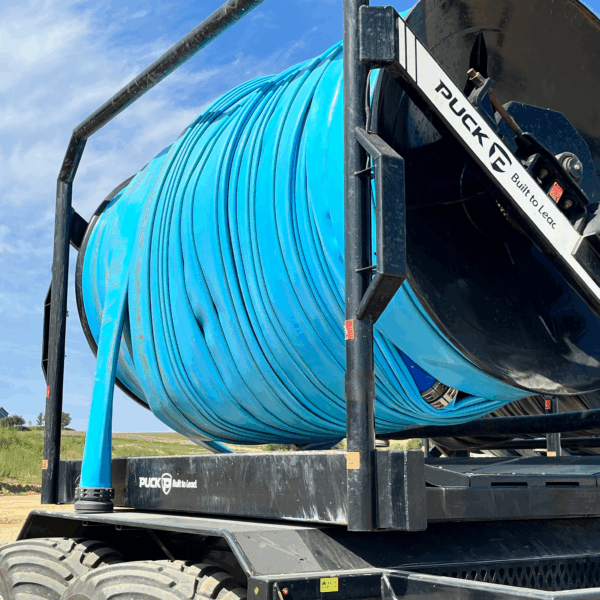

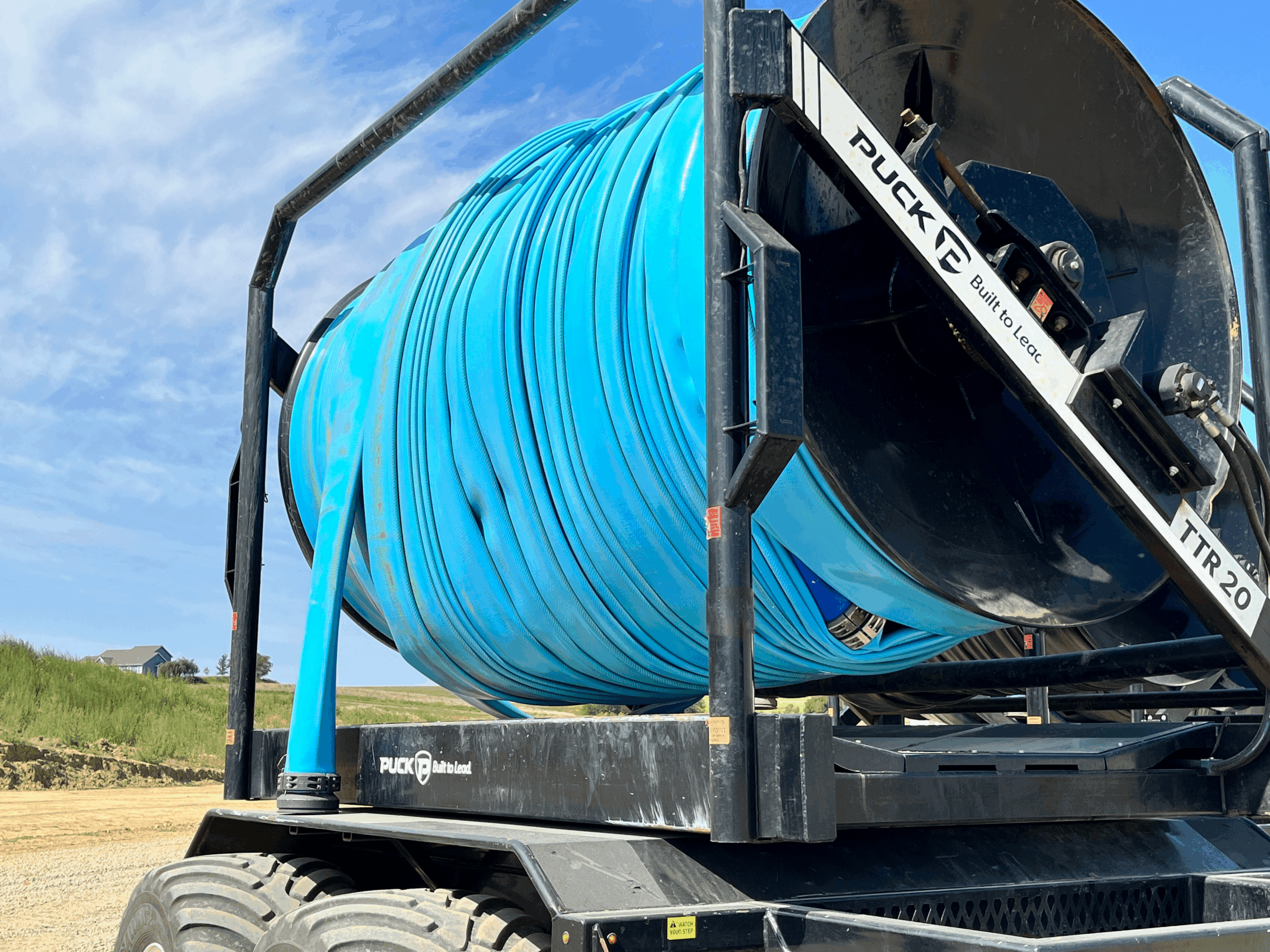

BullDog's X24 light blue drag hose rolled on a Puck TTR 20 hose cart

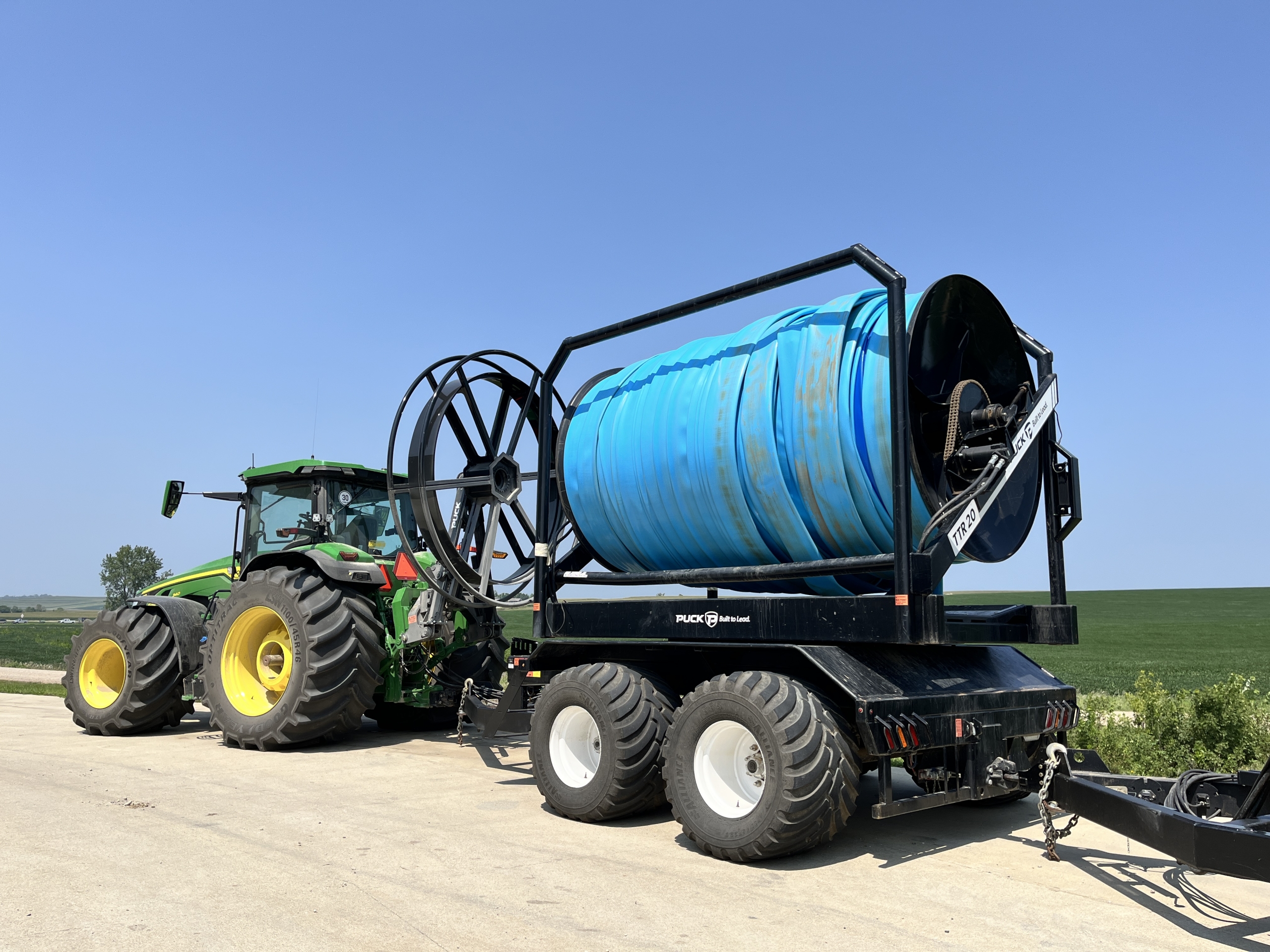

BullDog X24 light blue drag hose rolled on a TTR 20 hooked up to a tractor with a hose mover on the 3PT

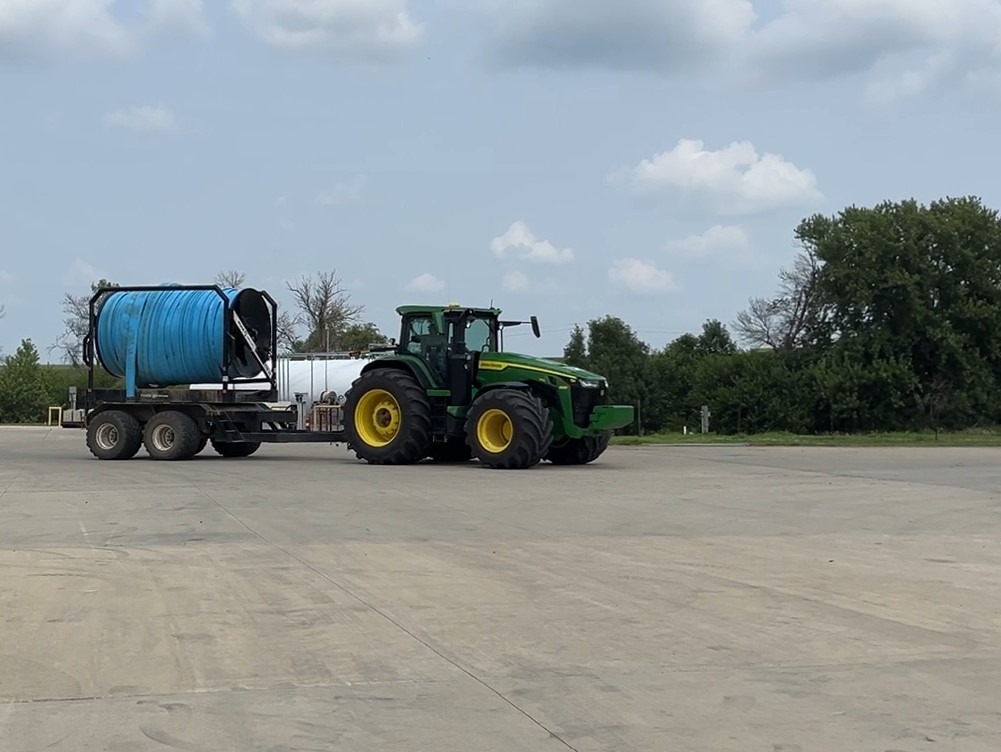

X24 drag hose on hose reel

X24 Drag Hose

$100,00$500,00



an isolated image of the X24 drag hose

BullDog X24 is a high performance flexible lay flat, large diameter hose for sludge injection and transfer of slurries, liquid manure and municipal sludge. It is the ideal supply hose for dragline operations, built for both continuous and intermittent operation at high working pressures and being pulled behind toolbars. Our sales team is ready to discuss the benefits of a reliable and durable drag hose in your manure application operation. X24’s through-the-weave manufacturing technique prevents delamination and results in a much lower friction loss than aluminum or PVC pipe, reducing pumping costs. Swells in diameter enabling fluids to be pumped further and at higher flow rates. Raw materials, components and finished products are rigorously tested and inspected to ensure excellent product reliability.



X24 Features
  • Field Proven Design Visibility X24’s design is the product of over 3 years of field testing on dozens of customer operations across the USA. X24 is built to withstand the harsh environments.
  • Thick Outer Jacket Designed with our thickest outer jacket ever, the X24 ensures a longer service life for your operations. Since drag hoses wear from the outside, we’ve made the X24 thicker to keep your dragline running smoothly and efficiently.
  • High Visibility Contrast of the light hose color makes it easier to see during application in the field.
  • Ease of Drag Specifically designed to be pulled and dragged behind sludge injection vehicles and toolbars that inject liquids into the soil for agricultural gain.
  • Superior Abrasion Resistance Durable, abrasion resistant thermoplastic polyurethane construction for tough environments and challenging fields.
  • Unmatched Performance Long, continuous lengths can be quickly deployed and retrieved using light duty or power-driven hose reels.
  • Extreme Durability Features through-the-weave construction comprising a circular woven high tenacity polyester reinforcement, totally encapsulated in a tough, abrasion resistant, polyurethane cover and lining.
Typical Applications
  • Sludge injection
  • Slurry transfer
  • Municipal sludge
  • Liquid manure dragline
Unique Design Features
  • Lower friction loss
  • Reduces pumping costs
  • Higher flow rates and further pumping distance
  • Fast deployment and retrieval
  • Thicker outer jacket
Inquire Now
Inquire About X24 Drag Hose
This field is for validation purposes and should be left unchanged.
$100,00
Drag Hose Specifications:
Size Pressure End Tensile Strength Weight
Service Burst
inch mm psi kpa psi kpa lbs kg lbs/ft kg
5 125 250 1,724 500 3,447 40,000 18,144 1.15 0.52
5-1/2 140 250 1,724 500 3,447 46,000 20,865 1.33 0.60
6 150 250 1,724 500 3,447 64,000 29,029 1.95 0.88
7-1/4 184 250 1,724 500 3,447 70,000 31,751 2.50 1.13
Technical Data
Outer Thermoplastic Polyurethane
Inner Hose ReinforcementThermoplastic Polyurethane
Lengths660’ (201m) one piece length
Temperature Range-58° F to 158° F (-50° C to 70° C)
