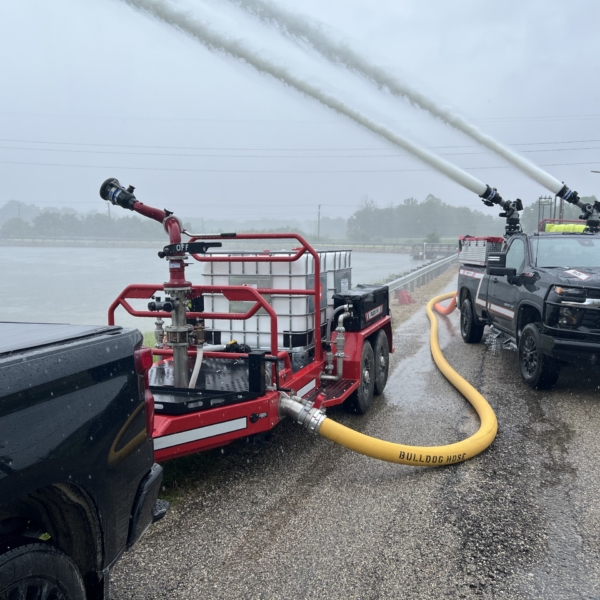

BullDog Hi-Vol hose connected a manifold to a Puck Fire Quick Attack truck
BullDog Hi-Vol supply hose connected a fire hydrant and a fire truck on the scene at night
BullDog Hi-Vol supply hose connected a fire hydrant and a fire truck on the scene at night
  • Hi-Vol
  • BullDog Hi-Vol hose connected a manifold to a Puck Fire Quick Attack truck
  • BullDog Hi-Vol supply hose connected a fire hydrant and a fire truck on the scene at night
  • BullDog Hi-Vol supply hose connected a fire hydrant and a fire truck on the scene at night
    • Back

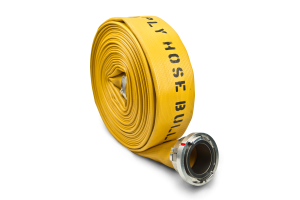

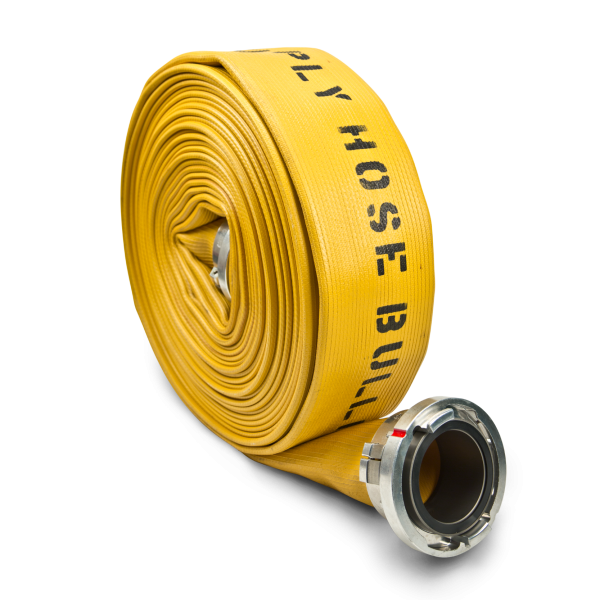

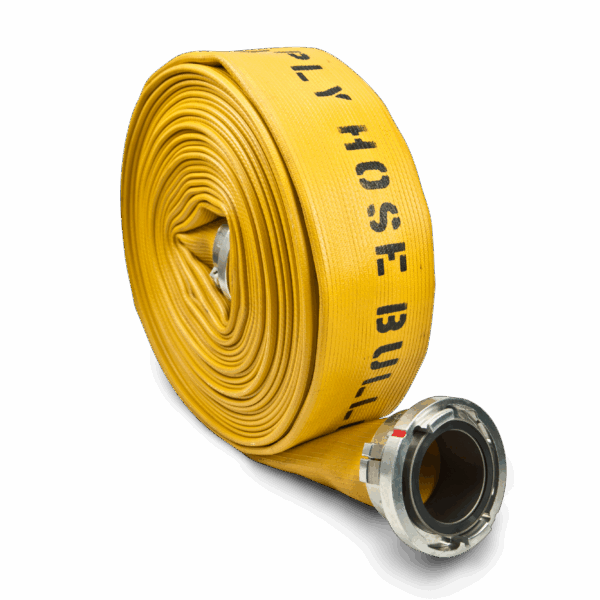

    Hi-Vol Supply Hose®

    Fire

    Hi-Vol® is a tough supply hose that maintains excellent water flow. It is a premium extruded through-the-weave, large diameter, nitrile-rubber hose with the ability to deliver more water in high-pressure situations. This fire hose is compact and durable with a high resistance to oils, chemicals, UV and ozone.

    A tough, high-tensile cover and lining, permanently interlocked with the synthetic reinforcement, keep your water supply flowing with greater abrasion and puncture resistance, along with unmatched kink resistance. Hi-Vol® is guaranteed to meet specified burst pressure and exceeds NFPA 1961 standard. Hi-Vol® is a tough supply hose that maintains excellent water flow that will never mildew or rot.

    Hi-Vol ® Features
    • Lowest Friction LossSuperior efficiency on the fireground, delivering more GPM with lowest friction loss. Smooth inner liner keeps friction loss to a minimum.
    • Best-in-Class AdhesionProvides enhanced hose performance and increased hose life.
    • Improved PackabilityCompact and flexible.
    • Anti-Burst TechnologyHose is protected from catastrophic bursts, even with a 1/2” diameter hole through both the jacket and liner.
    • Superior Abrasion PerformanceNitrile-rubber cover eliminates additional weight issues caused by water pick up during use and greatly increases abrasion resistance, providing a long service life.
    • Exceeds StandardsHi-Vol is manufactured to meet or exceed
      NFPA 1961 standard.
    • ULCAvailable on 4” and 5”.
    • BullDog Hose meets the requirements of ISO 9001:2015
    Download
    Watch Supply Hose In ActionInquire Now
    Inquire About Hi-Vol Supply Hose
    This field is for validation purposes and should be left unchanged.

    This product is currently out of stock and unavailable.

    $0,00
    Hi-Vol® Specifications:
    Size Pressure Bowl Size Weight (100'/30M) Coil Diameter (100'/30M)
    Service Proof Burst
    inch mm psi kpa psi kpa psi kpa inch lbs kg inch mm
    3 76 300 2,068 600 4,137 900 6,205 3-5/16 60 27.2 25 635
    4 102** 250 1,724 500 3,447 750 5,171 4-5/16 84 38.1 24 610
    5 127** 250 1,724 500 3,447 750 5,171 5-3/8 104 47.2 27 686
    6 152 250 1,724 500 3,447 750 5,171 6-15/32 148 67.1 32 813
    **ULC Listed
    Technical Data
    Inner Hose Cover & LinerNitrile/PVC Rubber
    Inner Hose Reinforcement 100% synthetic circular woven
    Lengths 50’, 75’, 100’ coupled
    Lengths UncoupledUp to 660’ (201 m)
    Factory Installed Couplings Per Customer Requirement
    Temperature Range-36º F to 158º F (-37º C to 70º C)
    Approvals UL Listed, ULC Listed (4", 5")
