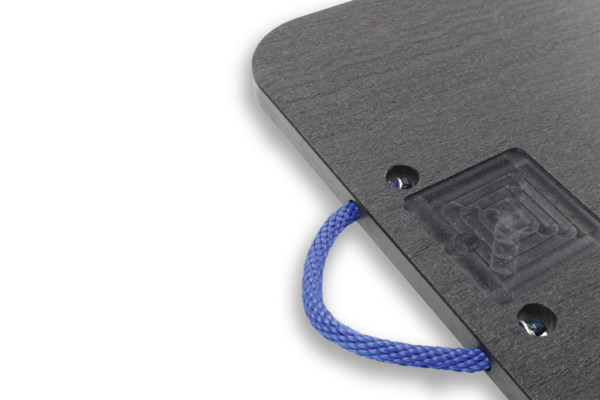

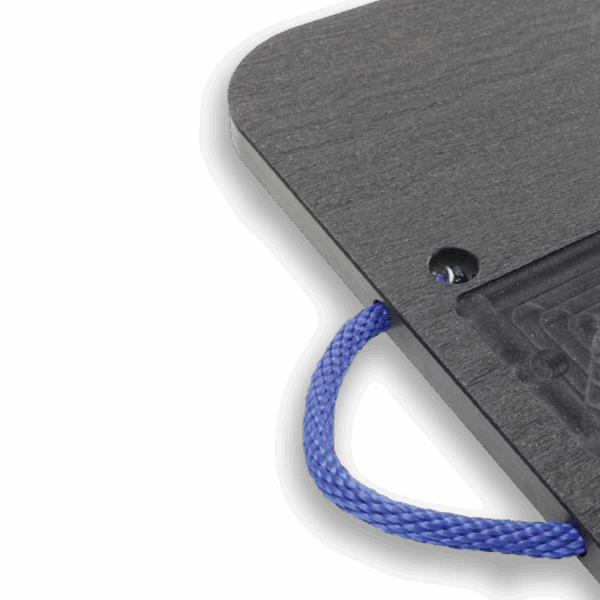

a Cope Plastics outrigger pad up close

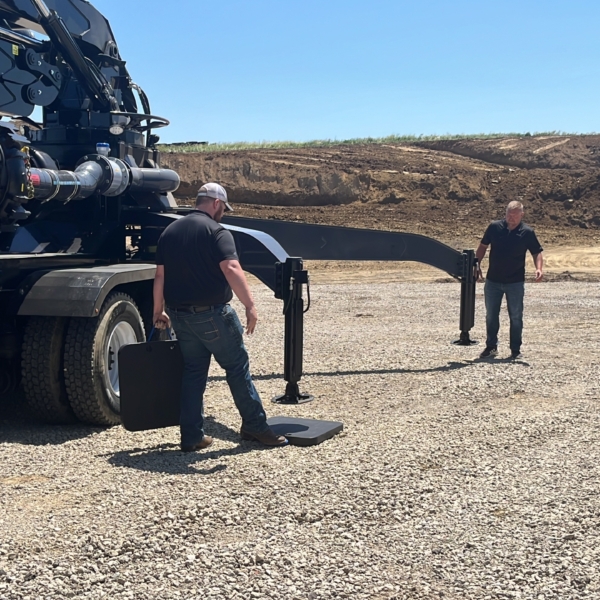

RJ and Doug placing the Cope Plastics outrigger pads under the Boom Truck outriggers

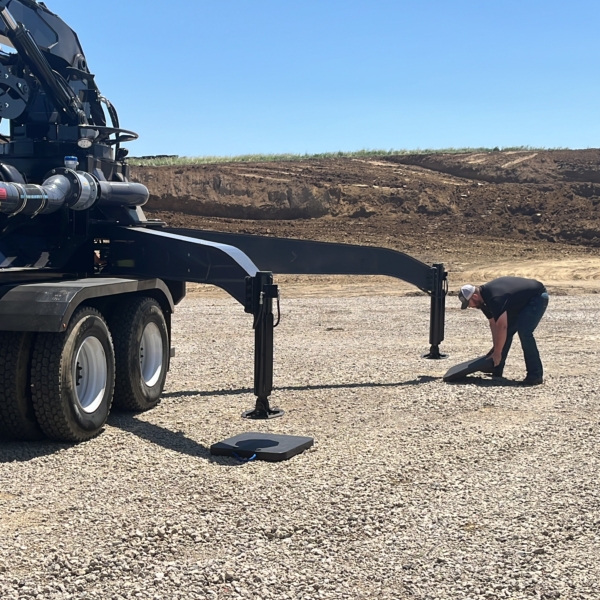

RJ placing the Cope Plastics outrigger pads beneath the Boom Truck downriggers
Doug working the Boom Truck outriggers to set down on the Cope Plastics outrigger pads on the uneven ground

Outrigger Pads

Every lift is a critical lift with regards to safety. Provide better load distribution for lifting equipment and help prevent catastrophic accidents with UHMW plastic outrigger pads. Cope Plastics Outrigger Pads are engineered with Ultra-High Molecular Weight Polyethylene (UHMW) plastic. This engineered plastic is an extremely durable and slip-resistant material to hold outriggers in place, even in wet or slick conditions. Unlike wood, UHMW plastic is impervious to rot, absorption, and degradation from ground conditions. The tough plastic is resistant to moisture and chemicals for a long lifespan.

Each of Puck’s pump units with extended boom have a storage area for the outrigger pads. These pads are lightweight enough for a single operator to retrieve and place, with an attached handle for easier carrying. For the fastest setup, one operator can extend the outriggers while another sets the outrigger pads in place. Once underneath the outriggers, the UHMW plastic pads distribute the weight across a larger surface area. The non-slip safety surface finish holds the outriggers in place for improved stability.

Outrigger Pad Features
  • Fabricated from Ultra-High Molecular Weight Polyethylene
  • Lightweight alternative to wood that is stronger and weighs half as much as wood
  • Impervious to rot, absorption, and degradation because of their moisture and chemical resistance
  • Made with a non-slip safety surface finish that holds outriggers in place in any condition
Designed for Every Application
  • Cranes
  • Concrete Pumpers
  • Earthmoving equipment
  • Fire trucks
  • Utility trucks
  • Dump trucks
  • Forestry equipment
  • Material handling equipment
Read More About Outrigger PadsWatch Outrigger Pad VideoInquire Now
Inquire About Outrigger Pads
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00
DIMENSIONS (INCHES)APPROX. PAD WEIGHT (LBS)WORKING LOAD LIMIT (LBS)MAXLOAD CAPACITY (LBS)
1 x 18 x 181245,000100,000
1 x 24 x 242055,000100,000
1 x 30 x 303275,000100,000
1 x 36 x 364595,000100,000
1 x 48 x 4880100,000100,000
1.5 x 36 x 3667110,000125,000
2 x 24 x 244080,000175,000
2 x 30 x 306395,000175,000
2 x 36 x 3690110,000175,000
2 x 48 x 48160140,000175,000
