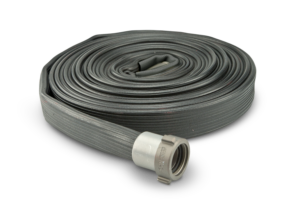

Armour GuardTM

BullDog Armour Guard™ is a lay-flat, flexible water-discharge hose that brings impressive flow to any oil field. It combines the lightweight, compact features of a unique nitrile/PVC blend with enhanced durability and abrasion resistance as compared to a conventional rubber hose. Armour Guard™ features a heavy-duty, one-piece design with all-synthetic, extruded-through-the-weave materials. This allows the hose to expand under pressure, decreasing friction loss and increases water flow. The ozone-resistant synthetic rubber liner and cover totally encase and protect the high-performance inner nylon reinforcement from the effects of abrasion, chemicals, and heat. Armour Guard™ cleans easily and offers ease of maintenance. The standard color is black.



Armour Guard Features
  • Improved friction loss over a conventional jacketed hose
  • High-pressure capability featuring 300 PSI working pressure
  • Compact, lightweight and flexible. This hose is ideally suited for firefighting and other demanding industrial applications
  • Required minimal storage space
  • No drying or racking required
  • Nitrile-rubber cover eliminates additional weight issues caused by water pick up during use and greatly increases abrasion resistance, providing a long service life
  • Best in class adhesion provides enhanced hose performance and increased hose life.
  • Exceptional heat resistance as exhibited in BS 6391 Hot Cube Test
  • Peak performance in a variety of environments, with optimum operating temperatures ranging from -36ºF to 158ºF (-37º C to 70º C)
  • Excellent flow characteristics
  • Cover resists fuels, oils and a wide range of chemicals
  • Available in 1 1/2” and 2 1/2” hand lines
  • Armour Guard is manufactured to meet or exceed
    NFPA 1961 standard.

This product is currently out of stock and unavailable.

$0,00
Inquire Now
Inquire About Armour GuardTM
This field is for validation purposes and should be left unchanged.
Armour Guard Specifications:
Size Pressure Bowl Size Weight (50'/15M) Coil Diameter (100'/30M)
Service Proof Burst
inch kpa psi kpa psi kpa psi kpa inch inch kg inch mm
1-1/2 38 300 2100 600 4200 900 6300 1-13/16 14 6.4 14-3/4 375
2-1/2 64 300 2100 600 4200 900 6300 2-7/8 26 11.8 16-1/2 419
Technical Data
Inner Hose Cover & LinerNitrile/PVC rubber
Inner Hose Reinforcement100% synthetic circular woven
Lengths50’, 75’, 100’ coupled
Lengths UncoupledUp to 660’ (201 m)
Factory Installed CouplingsExpansion ring couplings
Temperature Range-36º F to 158º F (-37º C to 70º C)
