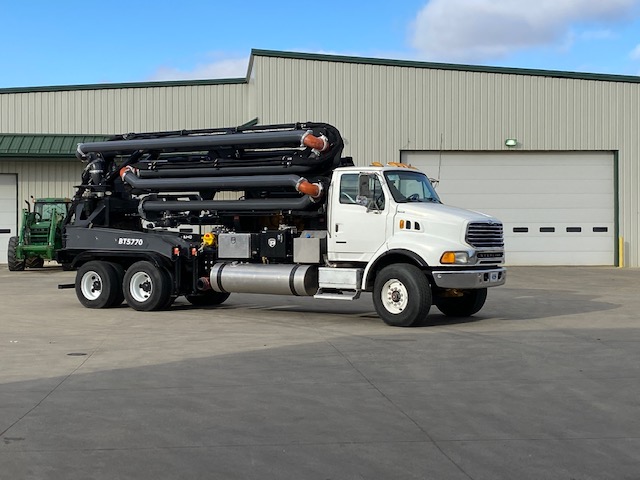

the side of a boom truck manure pump unit folded up for easy transport and storage

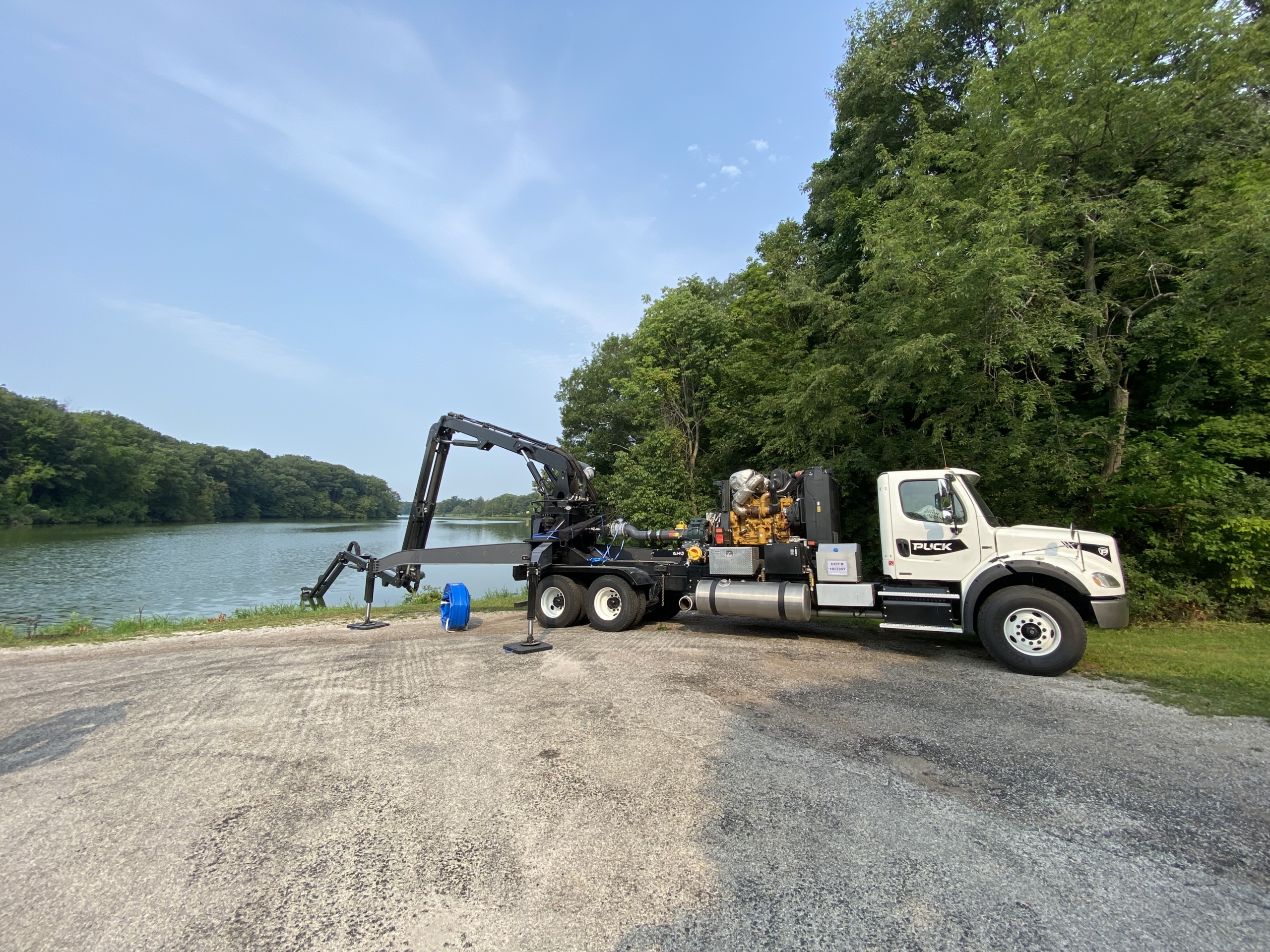

a boom truck parked and stabilized next to water with a blue hose rolled up next to the truck and ready to use
the back of a boom truck parked and stabilized by the water and connected to blue hoses. a firetruck is off to the side, ready to be connected

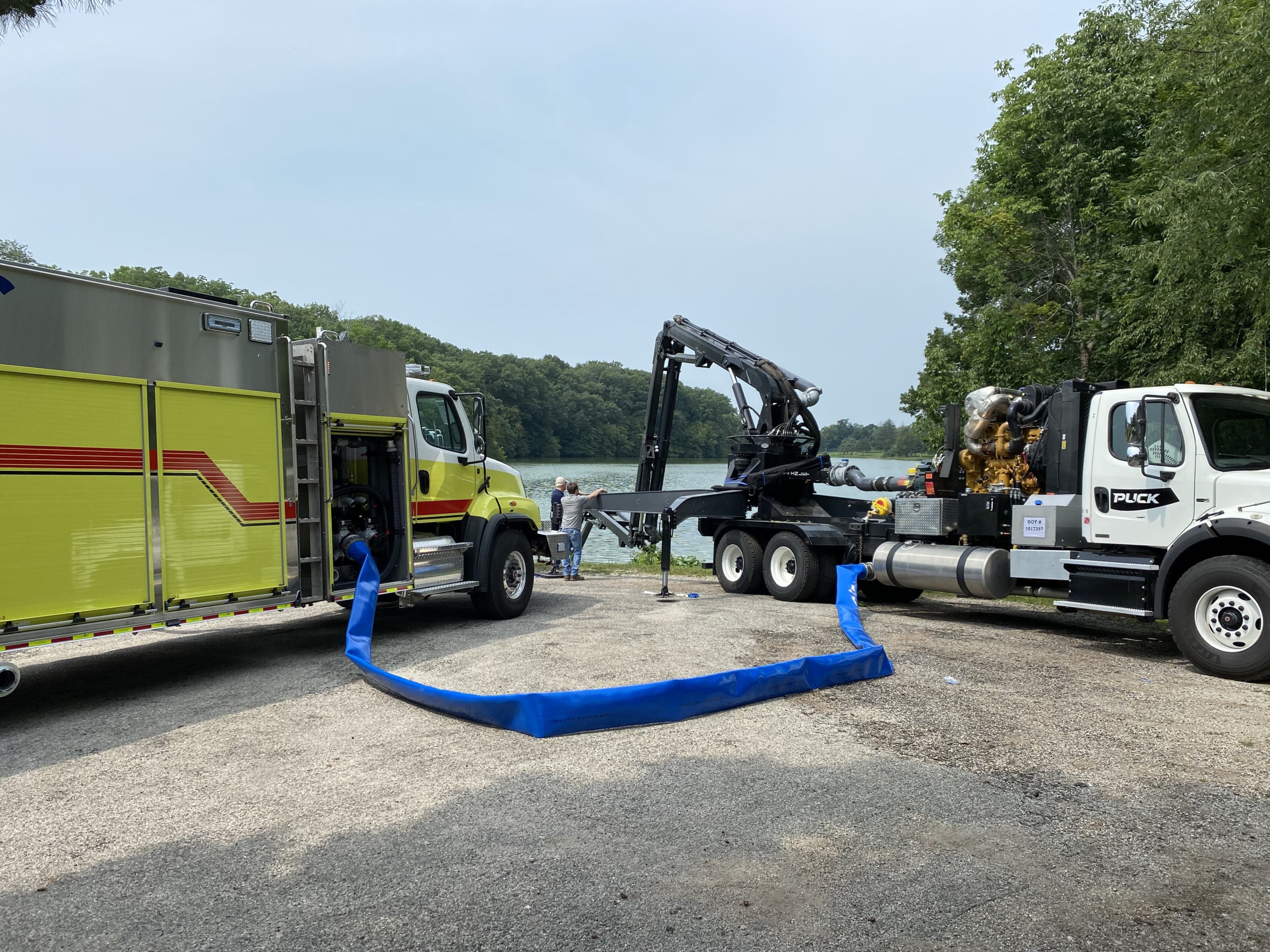

a fire truck and boom truck connected via a blue hose while parked next to the water

Boom Truck

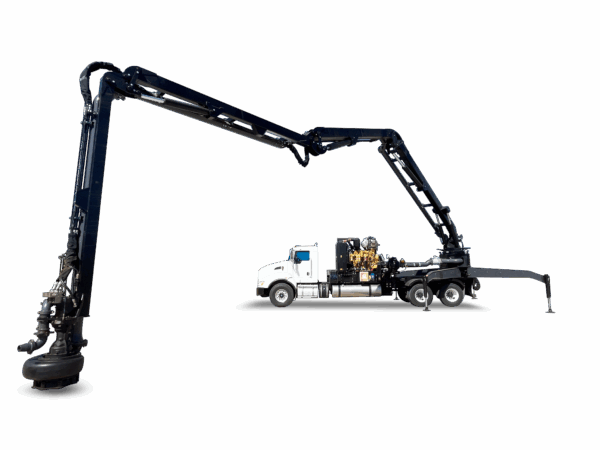

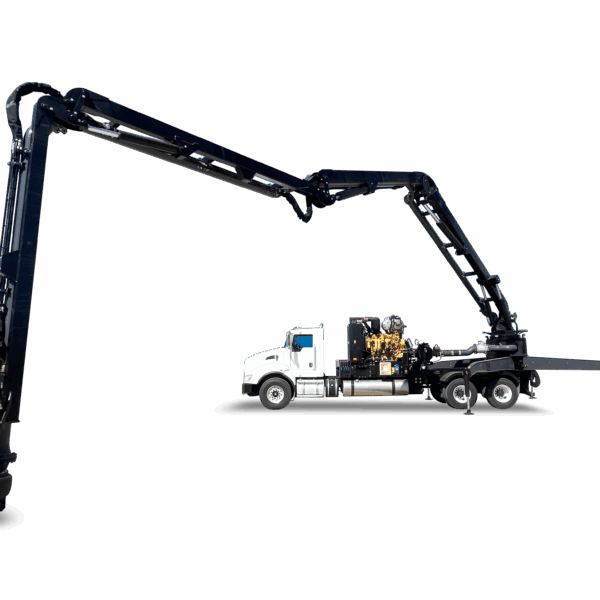

Puck lead pumps, like the Boom Truck, bring world class pumping capabilities to your liquid delivery operations. With a 70 foot reach and 4-section Z-fold, the Puck Boom Truck allows operators to go down and into deep storage, up and over a wall, as well as up close and into a pump out.

Setting it apart from other lead pumps, this Boom Truck operates two pumps simultaneously – a direct drive 6819MPC main pump and a 10NNWH hydrostat-driven boom pump. Perform lagoon cleanouts with the Puck Boom Truck at your wastewater treatment lagoon. Equipped with the LightSpeed control system, this liquid transfer pump unit is built for performance.

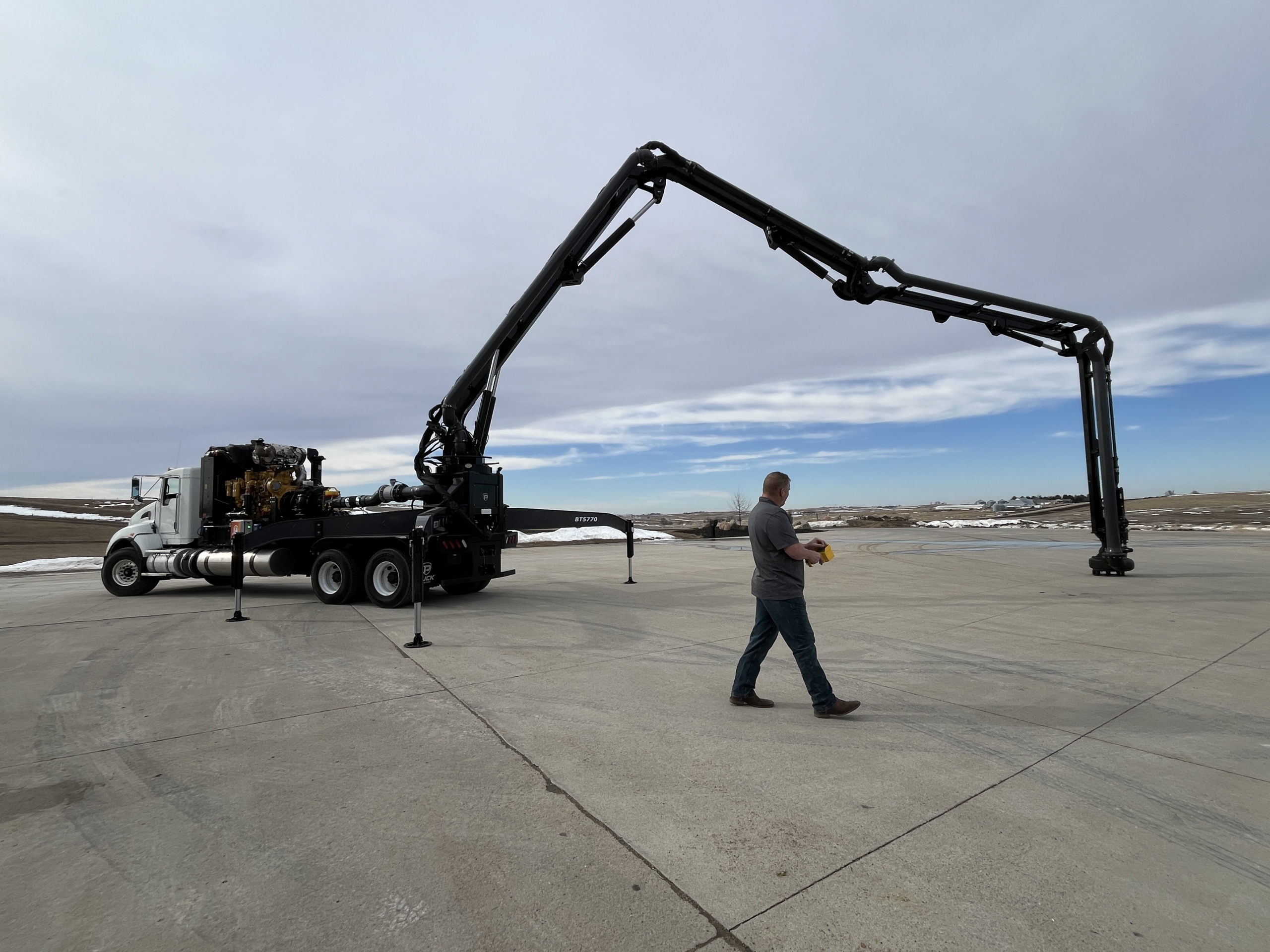

Combining the LightSpeed control system alongside the great features that come standard on most Puck equipment, operators get near-instant pump control accessible anywhere from almost any device, while safely controlling the boom with a remote control. All Puck equipment is built with our proven expertise and designed for optimal performance.

Boom Truck Features
  • LightSpeed Operating System
  • Can be used with customer preferred chasses: International, Freightliner, Peterbilt, and more
  • Shorter wheelbase and truck length (minimum 273″/83.2 m)
  • Compact rear mounted boom
  • Centralized control center
  • True 8 in ID steel FDS with minimal flow obstructions
  • Fast setup times
  • 275-300 gallon fuel capacity
  • Large outrigger footprint for improved stability
Boom Truck OverviewInquire Now
Inquire About Boom Truck
This field is for validation purposes and should be left unchanged.


LightSpeed is always watching the pump. Use Auto-Throttle to set operating pressures and program automatic responses, helping lock-in effective flow rates.

a boom truck parked and stabilized next to water with a blue hose rolled up next to the truck and ready to use

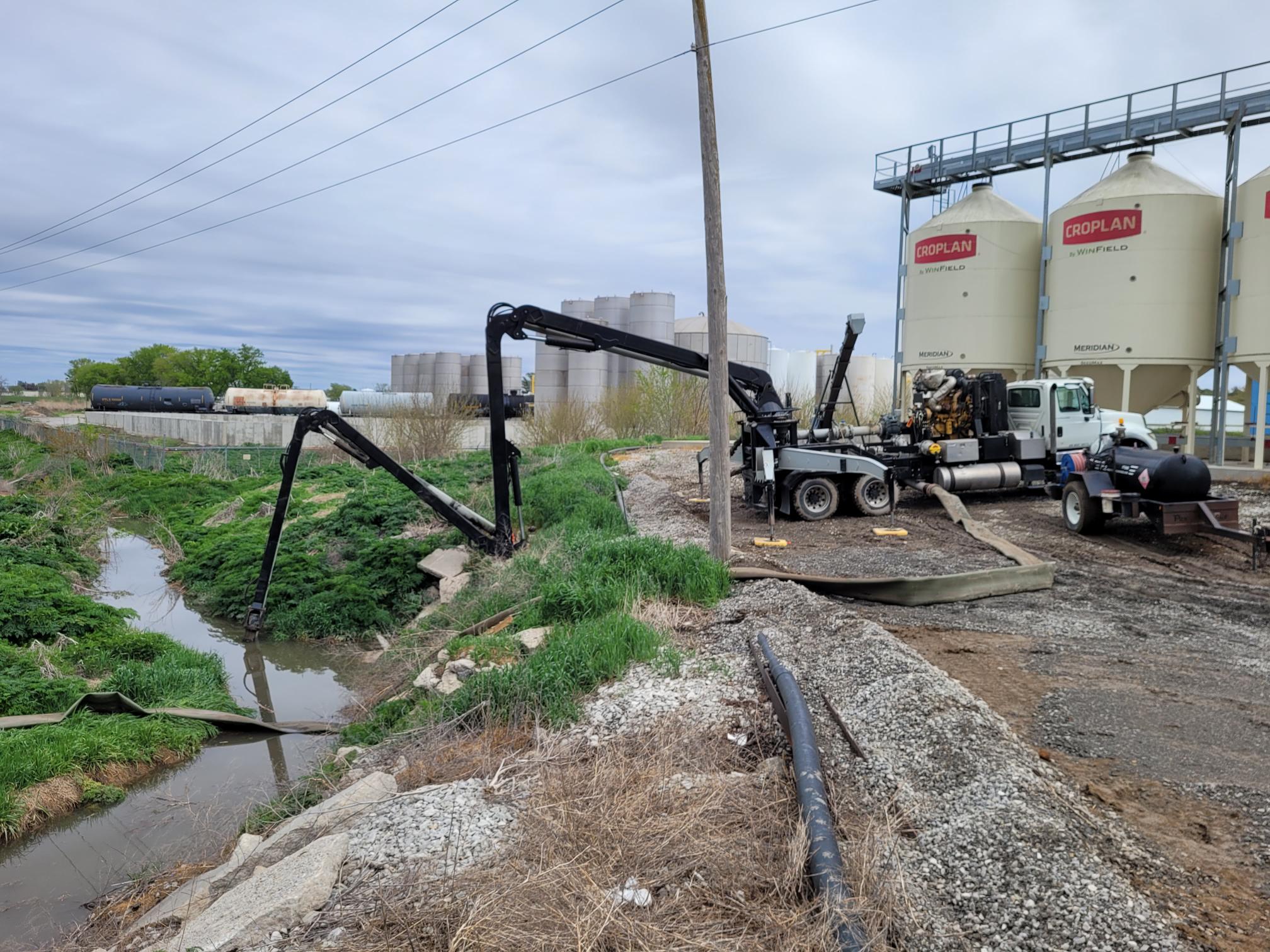

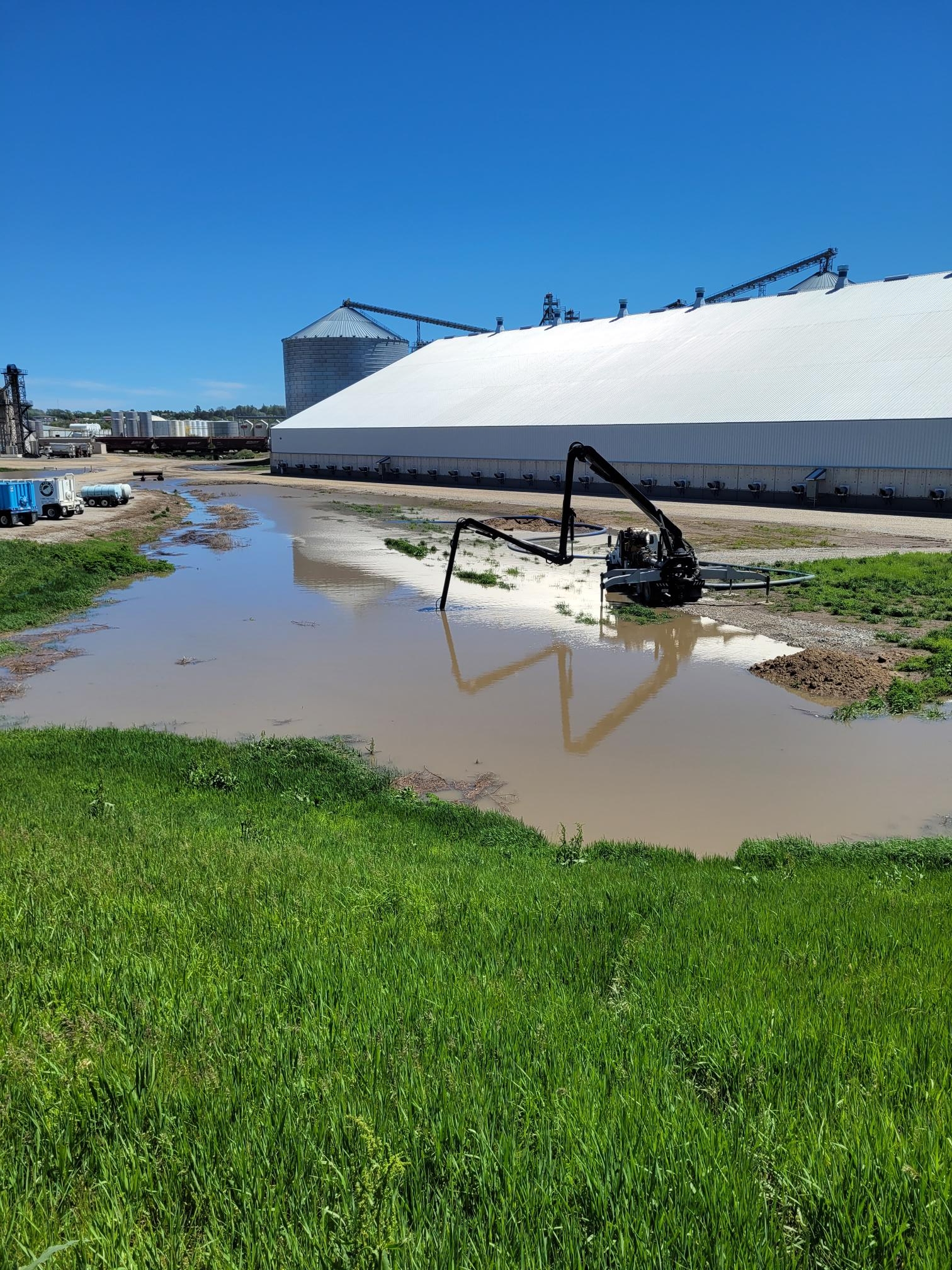

No matter what your operation looks like, the Boom Truck can help. It works for all kinds of liquid storage, seamlessly adapting to your operation.

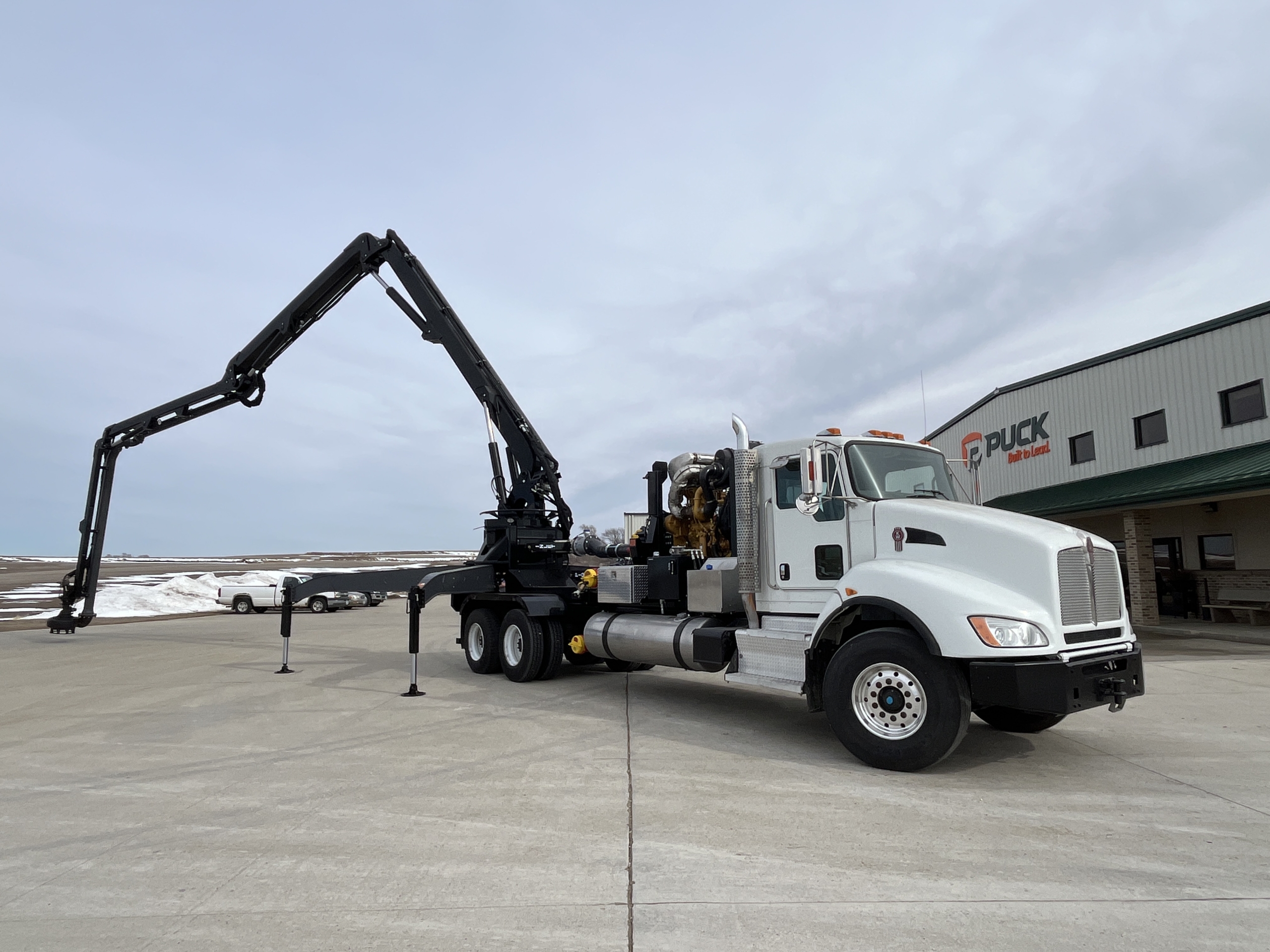

the large Boom Truck Outrigger providing improved stability


The Boom Truck has a large outrigger footprint for improved stability.

Model Number EnginePumpFeeder Pump
BT5770C13B (577 hp) 6819MPC10NNWH
