Self Prime Trailers

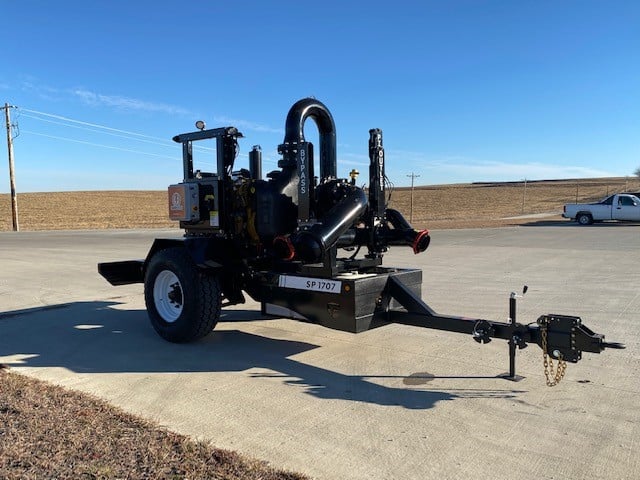

front side view of the self prime trailer with LightSpeed technology parked outside

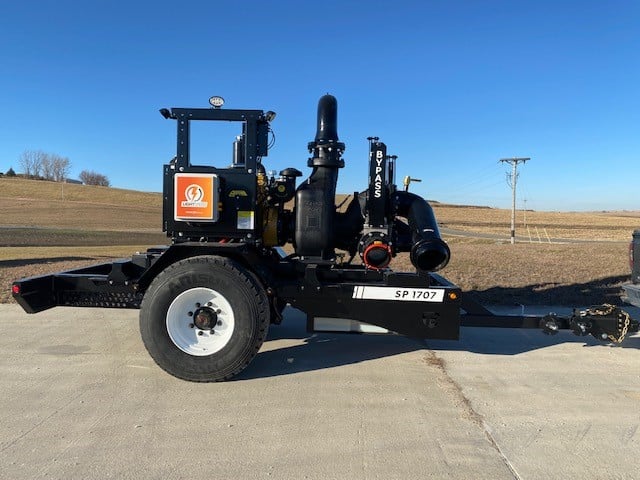

side view of the self prime trailer with LightSpeed technology attached to a truck hitch
Back

Self Prime Trailers

Agriculture

Taking advantage of the free energy of a suction hose, Puck’s Self-Prime Trailer offers an innovative pumping alternative to a submersible feeder pump. The centrifugal pump on the trailer is primed with a hydraulic vacuum pump, kicking into gear once liquid reaches the pump. The Self-Prime Trailer’s smart design uses physics to pump liquid while saving on fuel costs efficiently.

Self Prime Trailer Features
  • Robust Puck-built trailer
  • Bumper or gooseneck trailer
  • Equipped with LightSpeed
  • Jib crane for suction hose handling
  • Hydraulic vacuum primer
  • ATV ramps
  • Maximizes fuel efficiency
  • Different options to meet all flow needs
Download
Inquire Now
Inquire About Self Prime Trailers
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

$0,00
side view of the self prime trailer with LightSpeed technology attached to a truck hitch

TAILORED CHASSIS OPTIONS

From basic to custom, Puck can manufacture your Self-Prime Trailer on the chassis that works best for your manure pumping operation. Other variations include the selection of a Bumper or Gooseneck hitch, optional ATV ramps, and space for extra fuel storage.

a close view of the Cornell 6NHTC-19 Legacy Pump on a self prime trailer

EFFICIENT FLOW, EXCELLENT LIFT

The Cornell 6NHTC-19 Legacy Pump provides a high level of productivity, with a max flow of 3,750 gpm and 225,000 gallons per hour. The trailer’s lift goes up to 20 feet at 2,500 gpm and 14 feet at 3,500 gpm, measured from the center of the pump to the top of the water.

close view of lightspeed control system on Self Primer trailer

SMART START-UP AND FULL PROTECTION

LightSpeed, standard with every unit, can keep your pump from caveating and provide you in-depth monitoring of flow rates and pump performance. LightSpeed brings additional efficiency to your operation, with full start-up (including priming) and near-instant control available through the program.

Self Prime Pump Unit fits all pits

ONE TRAILER FITS ALL

Puck’s Self-Prime Trailer is built to fit any size of liquid storage. This unit is a versatile lead pump bringing you proven performance with added efficiency.

ModelEnginePump
SP 1707C4.4 (174 hp)10STX
