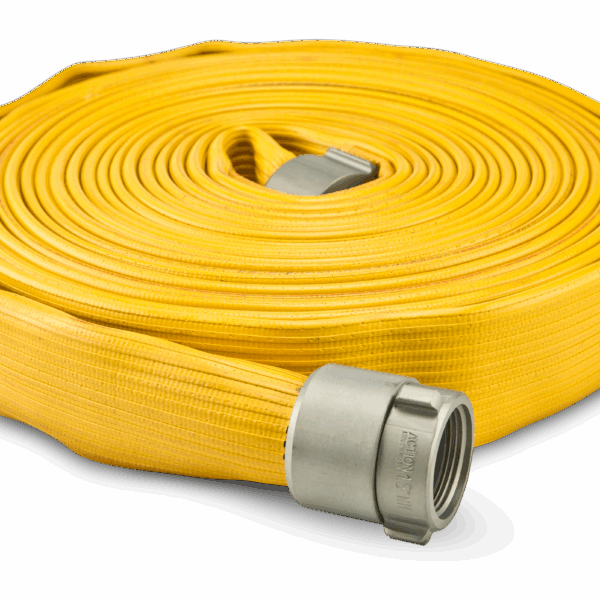

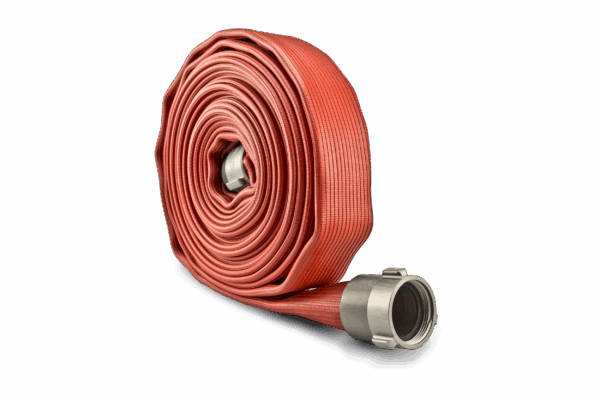

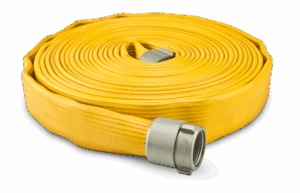

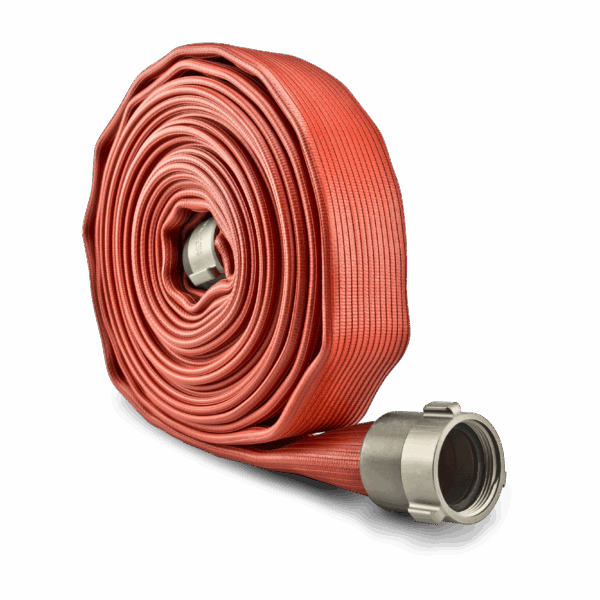

Red/Yellow Chief®

BullDog’s exclusive heavy-rib outer cover combines with a unique nitrile-PVC rubber, through-the-weave construction to provide the backbone of excellent hose performance in Red Chief® and Yellow Chief®. The heavy-rib construction protects your water supply with a high resistance to cuts, punctures and abrasion. Compact and kink resistant, lightweight and easily maneuverable, Red Chief and Yellow Chief are ideally suited to meet the specifications and tough demands of most municipal fire departments. With a proof pressure of 600 PSI (4200 kPa) and a tolerance for heat and cold, these hoses maintain peak performance in any season or environment, withstanding temperatures from -36º F to 158º F (-37º C to 70º C).

Red Chief/Yellow Chief hose is virtually maintenance free and requires no drying after use. With these powerful hoses, you save time and money, since less backup hose is needed. Red Chief and Yellow Chief are in a class by themselves — clearly superior to traditional attack lines and compliant to the NFPA 1961 standard.



Red/Yellow Chief® Features
  • Ultra Lightweight Lightweight and flexible for easy handling and less working stress.
  • Best in Class Adhesion Provides enhanced hose performance and increased hose life.
  • Superior Abrasion Performance Nitrile-rubber cover eliminates additional weight issues caused by water pick up during use and greatly increases abrasion resistance, providing a long service life.
  • Anti-Burst Technology Hose will not burst catastrophically, even with a 1/2” diameter hole through both the jacket and liner.
  • Low Drag Coefficient A unique exterior rib design makes it easy to pull during attack operations.
  • Exceptional Heat Resistance High heat resistance as exhibited in the BS 6391 Hot Cube Test. Temperature range -36º F to 158º F (-37º C to 70º C).
  • Exceeds Standards Red Chief and Yellow Chief are manufactured to meet or exceed NFPA 1961 standard.
  • Listing Options Agency approvals by UL, ULC, or FM are available on select sizes and colors, inquire for details.

This product is currently out of stock and unavailable.

$0,00
Inquire Now
Inquire About Red/Yellow Chief®
This field is for validation purposes and should be left unchanged.
Red/Yellow Chief® Specifications:
Size Pressure Bowl Size Weight (100'/30M) Coil Diameter (100'/30M)
Service Proof Burst
inch mm psi kpa psi kpa psi kpa inch lbs kg inch mm
1-1/2 38 300 2,068 600 4,137 900 6,205 1-13/16 14 6.4 14.75 375
1-3/4 44 300 2,068 600 4,137 900 6,205 2-1/16 18 8.2 14.75 375
2 51 300 2,068 600 4,137 900 6,205 2-5/16 22 10.0 16 406
2-1/2 64 300 2,068 600 4,137 900 6,205 2-7/8 26 11.8 16.5 419
3 76 300 2,068 600 4,137 900 6,205 3-13/32 30 13.6 16.5 419
Technical Data
Inner Hose Cover & LinerNitrile/PVC Rubber
Inner Hose Reinforcement100% synthetic circular woven
Lengths50’, 75’, 100’ coupled
Lengths UncoupledUp to 660’ (201 m)
Factory Installed CouplingsPer Customer Requirement
Temperature Range-36º F to 158º F (-37º C to 70º C)
Approvals UL Listed, FM Approved (1-1/2", 2-1/2" Red Chief Only), ULC Listed (1-1/2", 1-3/4", 2-1/2")
