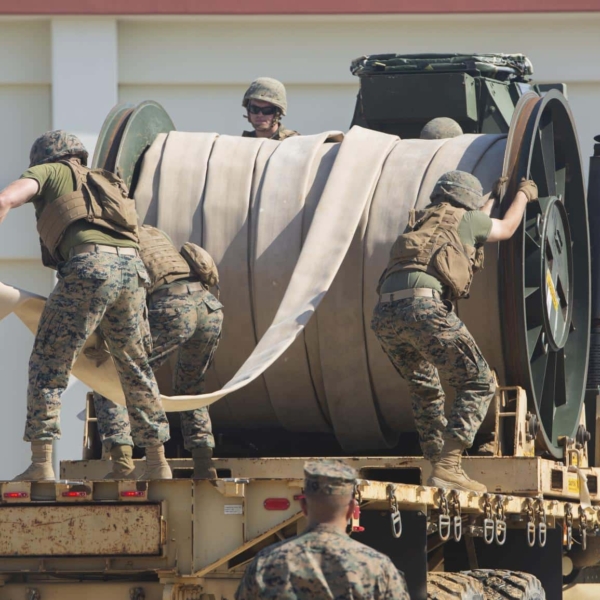

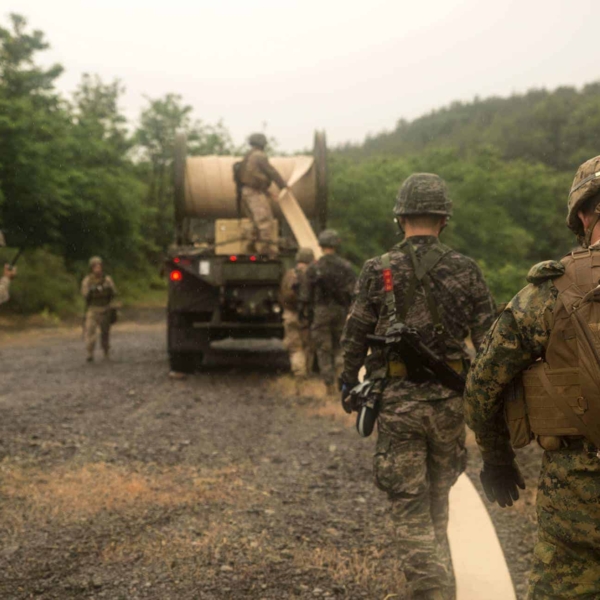

HF3CCY U.S. and Republic of Korea Marines work together to lay down a hose-reel system June 5 at Doksukri Training Area, Republic of Korea, during Korean Military Exchange Program 15-9. The hose-reel system is used to transport fuel to a fuel farm where it will be able to fuel any asset the Marine Corps has. The Marines laid 3.4 kilometers of hose, which will be used to pump 200,000 gallons of simulated fuel. KMEP 15-9 is focused on improving the engineering capabilities of each nation?s Marine Corps, all while improving relations across the region. The U.S. Marines are bulk fuel specialist with Bulk
Marines standing on the back of a truck unrolling a fuel hose

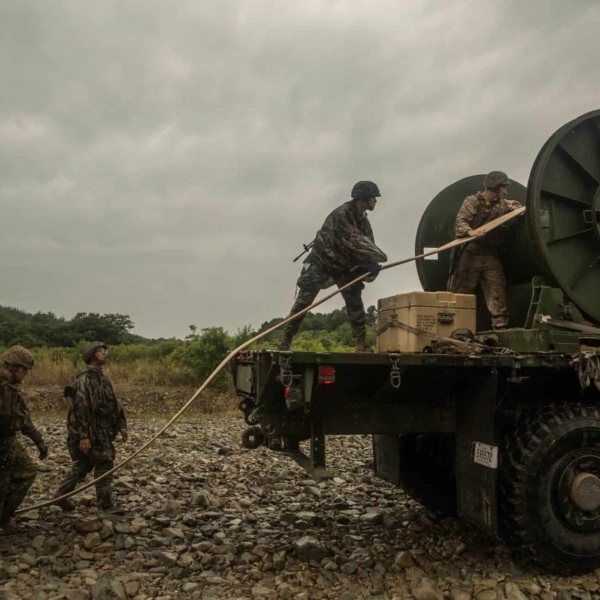

R4H8RX Marines with Bulk Fuel Company, 9th Engineer Support Battalion, 3rd Marine Logistics Group, unreel a fuel hose from the back of a Medium Tactical Vehicle Replacement 7-ton truck during fuel support operations training Oct. 2, 2018 at Camp Hansen, Okinawa, Japan. The Marines unrolled the hose to connect the fuel site and the fuel pump to distribute water, which is used during training evolutions instead of fuel, through the lines. The bulk fuel specialists assembled fuel sites at Camp Hansen in order to practice fueling support operations for upcoming exercises and deployments.

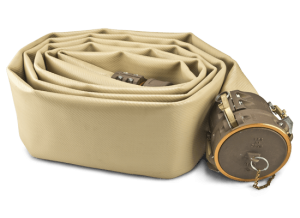

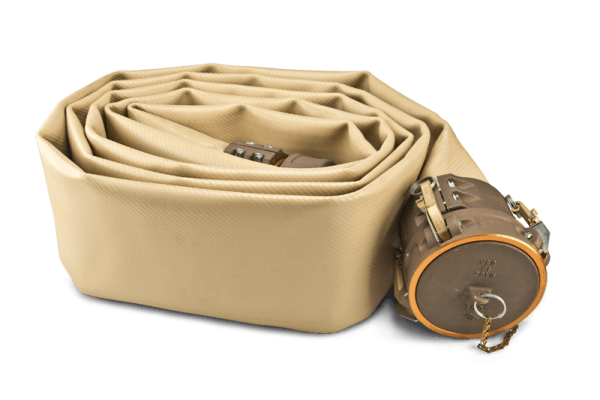

Fuel Hose

The hose that is there for all your fuel transfer needs. BullDog Fuel Hose is a premium lay-flat hose designed to transfer fuel. Fuel Hose features a through-the-weave one-piece construction, with a circular-woven, high-tenacity polyester reinforcement that is completely protected with a tough elastomeric polyurethane cover and lining. The hose is designed for long life and maintenance-free service in the toughest situations. In one of the hardest environments, it’s been in service for more than 25 years.
Fuel Hose Features
  • Designed for long life and maintenance free service in even the harshest environments. Tough and durable with exceptional resistance to abrasion and cutting for use on a wide variety of ground conditions. No corrosion or scaling. Resistant to fuels, chemicals, UV, ozone, weathering, hydrolysis, and microbiological attack.
  • Low pressure loss for efficient pumping. Swells up to 10% above uncharged diameter at maximum operating pressure enabling more water to be pumped.
  • Features a unique through-the-weave one piece construction comprising a circular woven high tenacity polyester reinforcement totally encapsulated in a tough elastomeric polyurethane cover and lining.
  • Long continuous lengths can be quickly deployed and retrieved using a wide variety of systems including light duty trailers, flaking boxes, and power-driven reels. High flexibility and kink resistance allows natural ground contours to be followed without putting stress on the pipeline and eliminates expensive path cutting work. Fewer joints and faster connections mean reduced labor and equipment costs.
  • Long-term storage in coiled configurations will have minimal impact on hose life.
  • Bonding wires, conforming to MIL-PRF-370 Type C, are fitted to allow couplings to be electrically bonded when transferring fuels.
  • Wide range of couplings, manifolds, and hardware available for connecting the hose to additional segments, fluid supplies, or auxiliary hardware.
Inquire Now
Inquire About Fuel Hose
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

Fuel Hose Specifications:
Size Pressure Wall Thickness Weight**
Working Burst*
inch mm psi kpa psi kpa inch mm lbs/ft kg
2 51 200 1,378 600 4,136 .08 2.03 .21 0.095
2.5 64 200 1,378 600 4,136 .08 2.03 .30 0.136
3 76 200 1,378 600 4,136 .09 2.28 .37 0.168
4 102 200 1,378 600 4,136 .09 2.28 .56 0.254
6 152 200 1,378 600 4,136 .10 2.54 1.22 0.553
* Or maximum working pressure of attached coupling, whichever is the lower
** Excluding couplings
Technical Data
OuterThermoplastic Polyurethane
Inner Hose Reinforcement100% synthetic circular woven
LengthsUp to 660’ (201 m)
Factory Installed CouplingsPer Customer Requirement
Temperature Range-58° to 158° (-50º C to 70º C)
