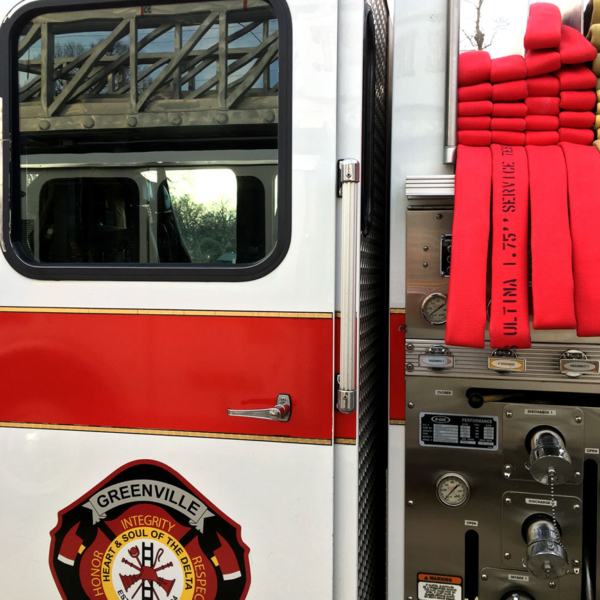

a close view of the Greenville Fire Department truck with red Ultima hoses lying in the back

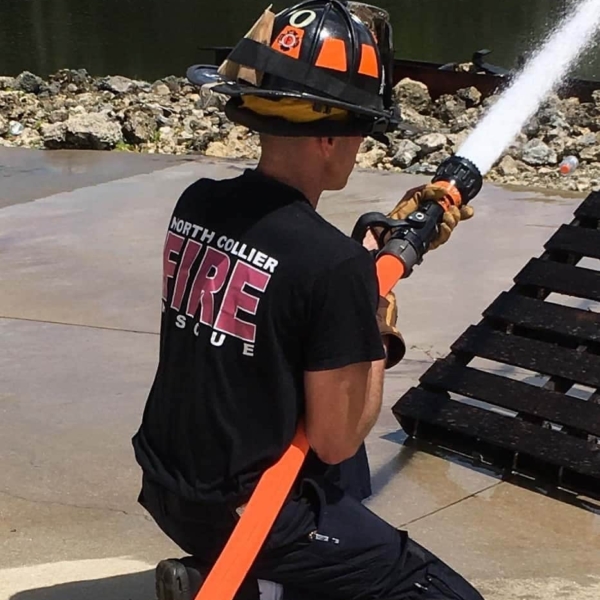

the back of a firefighter who is crouching on the ground and spraying water from the hose he holds
a firefighter connected the Ultima fire hose to the U.S. Coupling manifold attached to the arm of a fire hydrant on a street corner
a fire hydrant with a wrench sitting on top and a U.S. Coupling manifold attached to an arm with the crank open to allow water into the Ultima hose connected

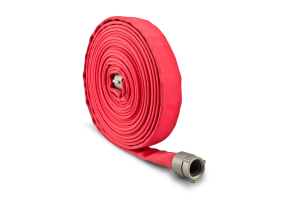

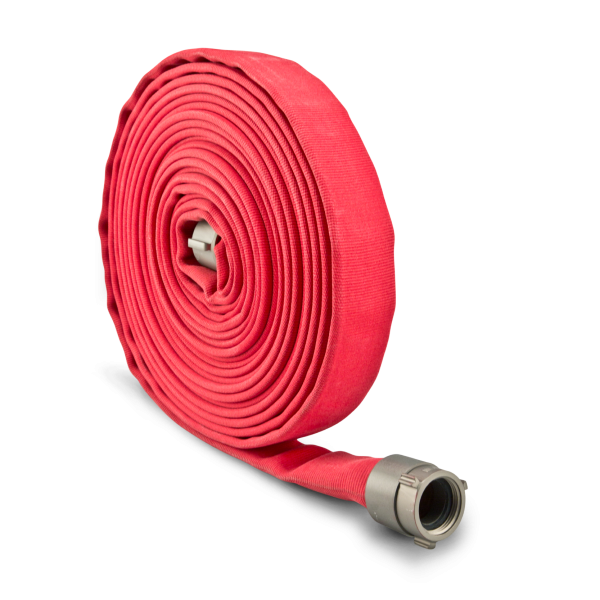

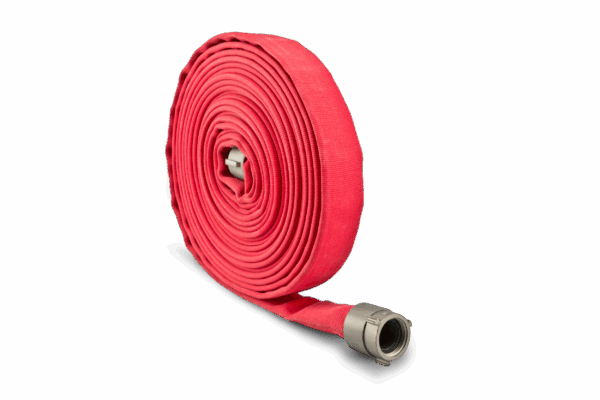

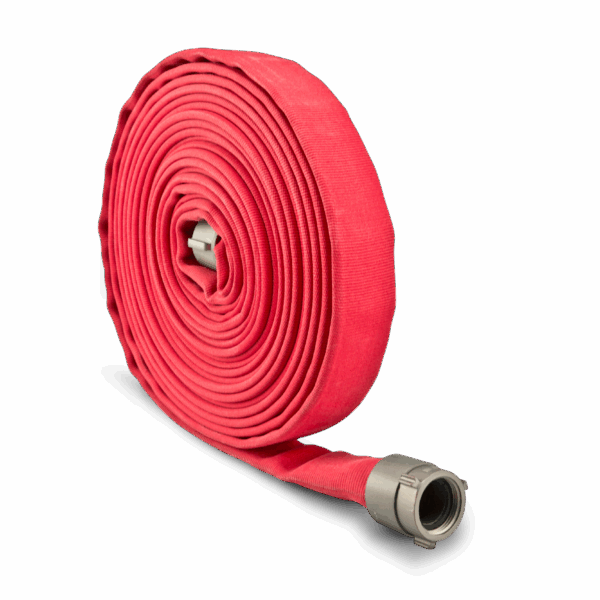

Ultima™ is a durable, double-jacketed hose constructed with staple-polyester, both warp and filler, and lined with a high-tech EPDM tube. Its design guarantees minimum weight with maximum durability and packability with minimal friction loss. This agility makes it useful for versatile firefighting techniques in a variety of environments, and its durability enables long-lasting use with minimal maintenance required.

The standard color for Ultima Hose is white. Other colors available with our innovative Armour Jacket abrasion-resistant coatings are red, yellow, orange, black, blue, green and tan. From its adaptable uses on the scene to the range of customizable coating colors, this attack fire hose adapts to your department’s needs at every stage.

Ultima Features
  • Low Maintenance Easy to clean and maintain.
  • Superior Abrasion PerformanceHigh abrasion resistance when treated with Armour Jacket coating.
  • Extreme DurabilityOzone-resistant for extreme durability. Temperature range -40º F to +112º F (-40º C to 44º C).
  • ULC Available on 1-1/2″, 1-3/4″, 2-1/2″.
  • Exceeds Standards Ultima is manufactured to meet or exceed NFPA 1961 standard and UL-19 standard.

Inquire Now
Inquire About Ultima
This field is for validation purposes and should be left unchanged.

This product is currently out of stock and unavailable.

Ultima Specifications:
Size (in/mm) Pressure Bowl Size (in) Weight (50'/15M) (lbs/kg) Coil Diameter (50'/15M) (in/mm)
Service (psi/kpa) Proof (psi/kpa) Burst (psi/kpa)
inch mm psi kpa psi kpa psi kpa inch lbs kg inch mm
1- 1/2 38 400 2,800 800 5,600 1,200 8,400 1-15/16 13 5.9 18 457
1-3/4 45 400 2,800 800 5,600 1,200 8,400 2-1/8 15 6.8 18 457
2 50 400 2,800 800 5,600 1,200 8,400 2-2/5 17 7.7 19 483
2-1/2 65 400 2,800 800 5,600 1,200 8,400 3 22 10.0 21 533
3 75 400 2,800 800 5,600 1,200 8,400 3-1/2 29 13.2 21 533
Technical Data
OuterPolyester staple & filament yarn
Outer Hose TreatmentArmour Jacket™
Inner Hose ReinforcementPolyester staple & filament yarn
Lengths50' and 100'
Lengths UncoupledExpansion ring threaded
Temperature Range -40º F to +112º F (-40º C to 44º C)
ApprovalsULC Listed (1-1/2", 1-3/4", 2-1/2")
