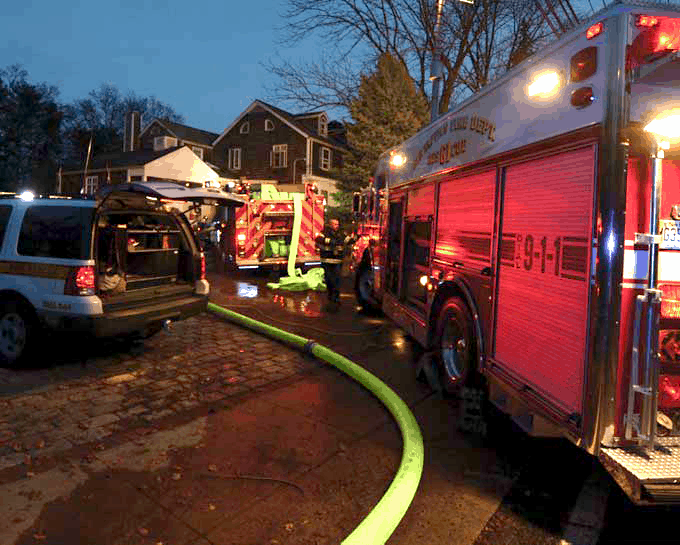

the bright yellow Hi-Vol TPU hose being used by firefighters in a residential neighborhood. the hose winds through the many trucks parked on the street

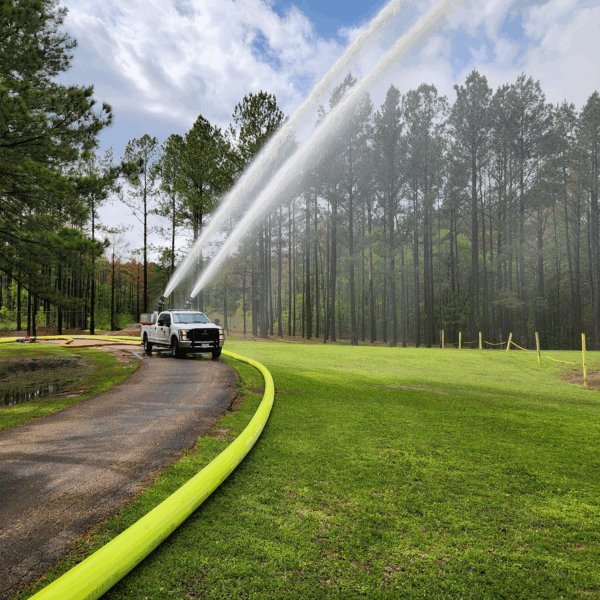

a Quick Attack truck connected to a Hi-Vol TPU hose spraying water high into the air from the bank of a lake
a FF4500-45 against the bank of a lake with boom extended into water and Hi-Vol TPU hose attached with a firefighter spraying water from an attack line supplied by the Force Feed trailer
a FF4500-45 against the bank of a pond with boom extended into water
  • a FF4500-45 with extended boom, a TTR15P with Hi-Vol TPU XLDH on the reel, and XLDH on the ground connecting the force feed trailer to a manifold
  • the bright yellow Hi-Vol TPU hose being used by firefighters in a residential neighborhood. the hose winds through the many trucks parked on the street
  • a Quick Attack truck connected to a Hi-Vol TPU hose spraying water high into the air from the bank of a lake
  • a FF4500-45 against the bank of a lake with boom extended into water and Hi-Vol TPU hose attached with a firefighter spraying water from an attack line supplied by the Force Feed trailer
  • a FF4500-45 against the bank of a pond with boom extended into water
    • Back

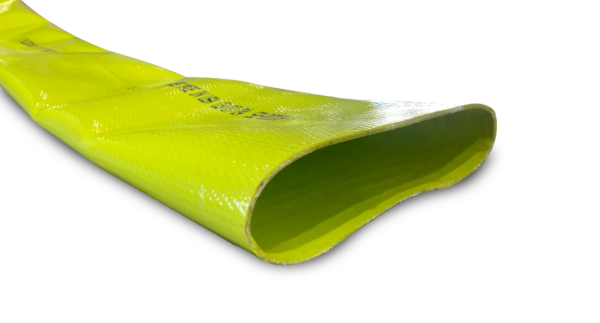

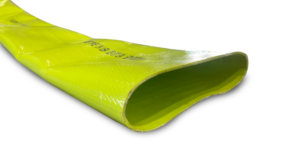

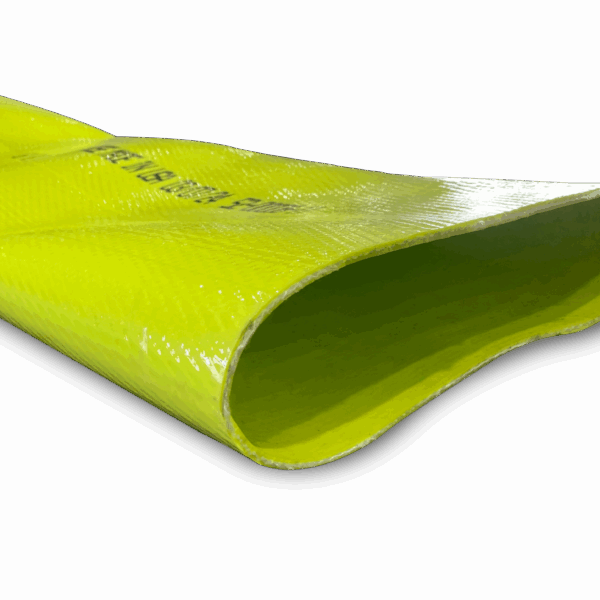

    Hi-Vol TPU XLDH Supply Hose

    Fire

    BullDog Hi-Vol TPU XLDH provides an extreme level of performance for a large diameter supply hose. The fire hose features a through the weave one piece construction with a high tenacity polyester woven jacket encapsulated in a tough polyurethane cover and lining. The XLDH hose is designed specifically to handle the rigors of the fireground. BullDog utilizes state of the art components that limit elongation and provide superior abrasion resistance during fire operations.

    Hi-Vol TPU XLDH Features
    • Superior Abrasion PerformanceTPU cover increases abrasion resistance, eliminates additional weight issues caused by water pick up during use, and provides exceptional chemical resistance.
    • Exceeds StandardsHi-Vol TPU XLDH is manufactured to meet or exceed NFPA 1961 standard.
    • Minimized Friction LossExtruded through-the-weave TPU construction and ultra- smooth liner minimize friction loss, improving water flow.
    • Unmatched PerformanceLong, continuous lengths can be quickly deployed and retrieved using light duty or power-driven reels.
    • Increased VisibilityHi-Vol TPU XLDH’s green color provides enhanced safety with visibility on the fireground.
    • Long Service LifeThermoplastic polyurethane hose kept in a coiled configuration can be expected to provide dependable service for up to 15 years.
    • Nearly Zero ElongationBullDog utilizes state of the art components that limit elongation and provide superior abrasion resistance during fire operations.
    • Available in 7-1/4” – 10” Diameter
    • BullDog Hose meets the requirements of ISO 9001:2015
    Download
    Inquire Now
    Inquire About Hi-Vol TPU XLDH Supply Hose
    This field is for validation purposes and should be left unchanged.

    This product is currently out of stock and unavailable.

    $0,00
    Hi-Vol TPU XLDH Specifications:
    Size Pressure Wall Thickness Weight Tensile Strength
    Working Burst
    inch mm psi kpa psi kpa inch mm lbs/ft kg/ft lbs kpa
    7-1/4 184 250 1724 500 3448 0.22 5.59 2.30 1.04 70,000 31,750
    8 203 250 1724 500 3448 0.19 4.83 2.21 1.00 92,250 63,600
    10 254 250 1724 500 3448 0.195 4.95 2.90 1.32 114,300 78,800
    Technical Data
    Outer CoverThermoplastic Polyurethane
    Woven Reinforcement High Tenacity Polyester Filament Yarn
    LengthsUp to 660' (200 meters)
    Factory Installed CouplingsPer Customer Requirement
    Temperature Range-58º F to 158º F (-50º C to 70º C)
