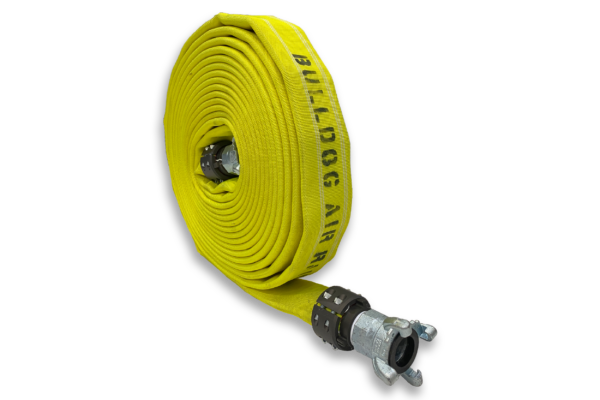

a donut rolled Air Raid hose lying on its side

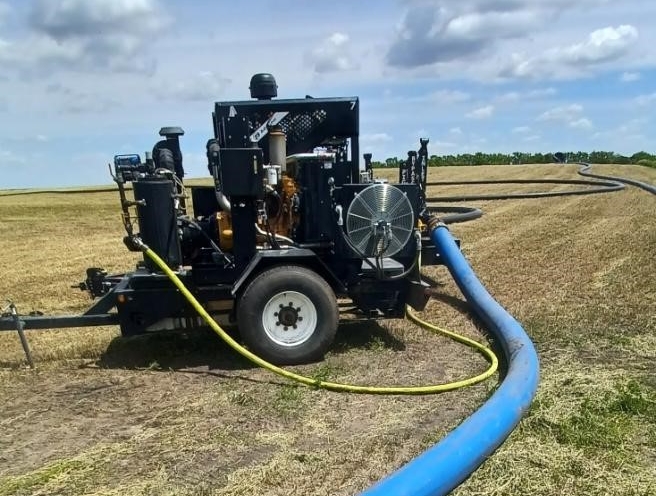

an air raid hose in use, connecting a truck to a mobile air trailer

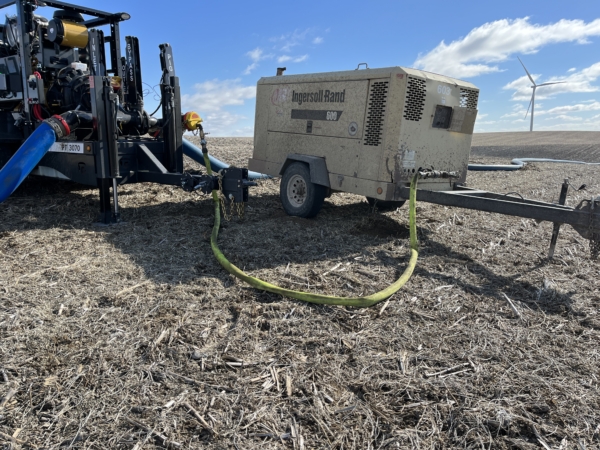

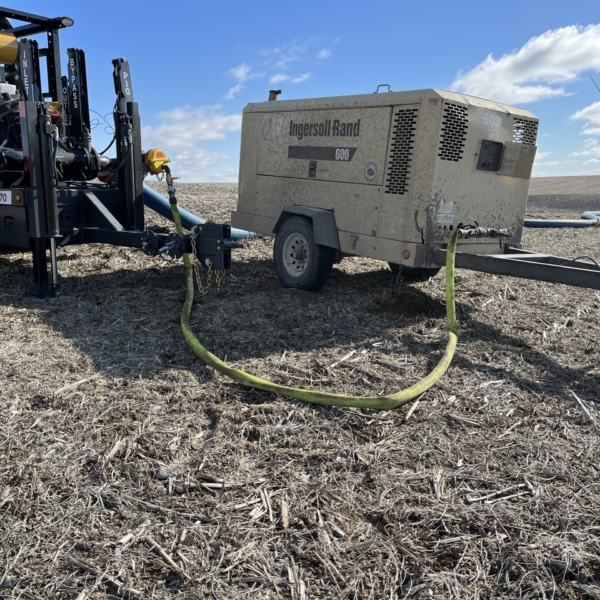

PT 3070 and air compressor in field connected with Air Raid lay flat air hose

Air Raid

When it comes time for pigging the line, you need an air hose that will make the job easier. Air Raid hose is an air hose designed for improved handling and long-term service. Air Raid features a through-the-weave nitrile-PVC rubber hose encapsulated by a high-tech nylon-polyester outer jacket. This lightweight air hose is lay-flat and non-rigid, which allows for you to easily roll it up and lift onto your air compressor’s storage rack.

Available in both 25’ and 50’ coupled lengths, this hi-vis hose comes standard with a 2” four claw Chicago air fitting connection. The double bolt collar makes it easy to change out in the field, giving your hose a longer life. Air Raid offers excellent packability and superior kink resistance. After you use Air Raid, you will never want to go back to your former air hoses again.

Air Raid Features
  • Lowest Friction LossSuperior efficiency in the field, delivering more air with less kinking.
  • Best-in-Class AdhesionProvides enhanced hose performance and increased hose life.
  • Improved PackabilityCompact and flexible.
  • Lay-Flat DesignThe flexibility of Air Raid’s lay-flat design allows for ease in packing, unpacking and handling, delivering more efficiency to your operation.
  • Superior Abrasion PerformanceThrough the weave nitrile-PVC rubber hose is encased in a nylon- polyester jacket that increases abrasion and chemical resistance.
  • Standard Color is Yellow
Inquire Now
Inquire About Air Raid
This field is for validation purposes and should be left unchanged.
Air Raid Specifications:
Internal Diameter Pressure Wall Thickness Weight** Tensile Strength
Max Working Burst*
inch mm psi bar psi bar inch mm lbs/ft kg/m x1000 lbs tons
2 50.8 150 10.3 1,500 103.4 0.175 4.45 0.45 0.67 26.6 13.3
* Or maximum working pressure of attached coupling, whichever is the lower
** Excluding couplings
